0°C To 100°C Thermistor Air Temperature Sensors With Cages

Original price was: $93.75.Current price is: $65.63.

Ideal for Measuring Air Temperatures in Laboratories and Laminar Flow Systems
Metal or Plastic Cage Provides Protection for Thermistor Sensor While Leaving it Open to the Air Flow
Thermistor Element is Epoxy Coated and Extends Into the Air Flow for Fast Temperature Response
ON-905 and ON-906 Models Available with Resistances of 2252 Ohms, 3000 Ohms, 5000 Ohms, 10,000 Ohms and 30,000 Ohms at 25°C. ON-405 and ON-406 Available with 2252 Ohms at 25°C Only

Accuracy

Nominal Resistance

Sheath Material

Cable Insulation

Cable Length

Clear

SKU: ON-905-44005 Categories: Air Sensor Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

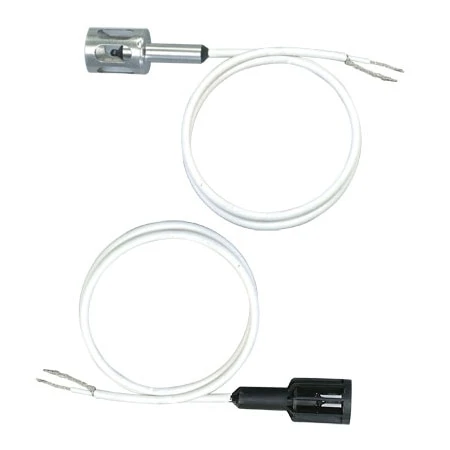

The exposed thermistor element with protective cage design makes this an ideal selection for the measurement and control of air and gas streams in a variety of applications. The protective cage is available in plastic or metal, and the ON-905 and ON-906 Models are available in five resistance specifications.

Accuracy	±0.2°C, ±0.1°C
Nominal Resistance	3000 Ω, 2252 Ω, 10,000 Ω, 5000 Ω, 30,000 Ω
Sheath Material	Stainless Steel, Plastic
Cable Insulation	PVC, PFA
Cable Length	12 in, 48 in, 120 in, 72 in, 40 in, 36 in
Category	Thermistor
Process Temperature Range	0 to 100°C (32 to 212°F)
Sensor Application	Air Probe
Probe Diameter	0.500 in
Probe Length	1.25 in
Termination Connection Type	Stripped Leads
