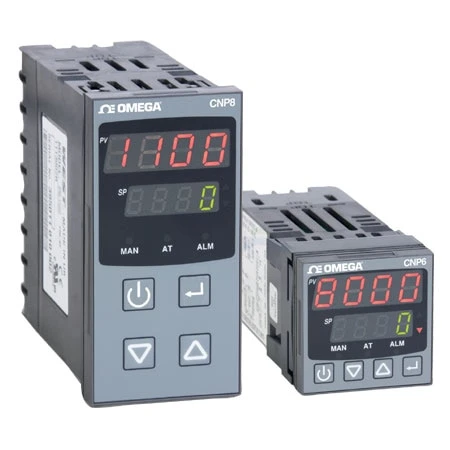

1/16 And 1/8 DIN Vertical Plastics Extrusion Process Controllers

Original price was: $398.60.Current price is: $98.99.

Simple to Operate, Preconfigured for Extrusion Applications
Universal Input
Selectable Controller or Indicator Modes
Heat Only or Heat Cool Control Type

SKU: CNP822111020 Categories: Control & Monitoring, Controllers, PID Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

With plastic extruder specific settings, the OMEGA CNP Series temperature controllers are an economic solution to precision temperature control of extruders. Reduce inventory—single device for heat only, heat/cool control and indicator. Fast configuration and and default parameters to fit the selected mode. With two package sizes and multiple output configurations,the controllers are suitable for twin and single screw extruders, both for heat only die and adapter zones, and heat/cool for barrel zones. The controllers can also be used in an indicator only mode, allowing one instrument to be used for all applications. With three default parameter settings for indicator, heat and heat/cool modes, the Omega CNP Series controllers offers the ultimate in flexibility for the control of industrial plastic extruders.

Measurement Type	Temperature, Process
Control Outputs	3
Form Factor	1/8 DIN
Number of Inputs	1
Input Type	Thermocouple, RTD, Current/Voltage
Communications	RS485 communications
Supply Voltage Type	AC
Ramp and Soak	None
Display Type	LED Display
Additional Feature	Low Voltage Power
Output Type	1 DC pulse, 2 SPDT 2A relay outputs
