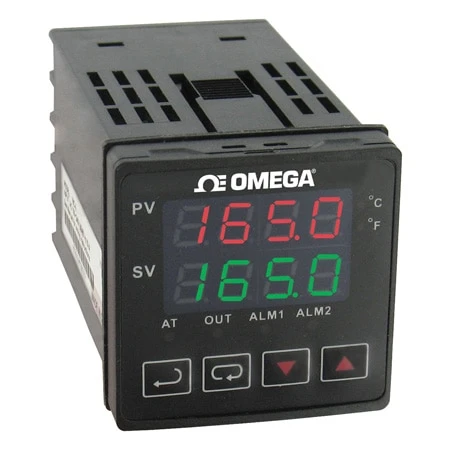

1/16 DIN Temperature Controllers With Autotune, Alarms And RS485

Original price was: $143.05.Current price is: $98.99.

1/16 DIN temperature controller with Dual Display
Autotune
RS-485 Communications
Free Software

SKU: CN743 Categories: Control & Monitoring, Controllers, PID Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Input Types	Range
Pt100Ω RTD	0 to 100°C (32 to 212°F) -20 to 500°C (-4 to 932°F) -200 to 600°C (-328 to 1112°F)
B Thermocouple	100 to 1800°C (212 to 3272°F)
S Thermocouple	0 to 1700°C (32 to 3092°F)
R Thermocouple	0 to 1700°C (32 to 3092°F)
N Thermocouple	-200 to 1300°C (-328 to 2372°F)
E Thermocouple	0 to 600°C (32 to 1112°F)
T Thermocouple	-20 to 400°C (-4 to 752°F) -200 to 400°C (-328 to 752°F)
J Thermocouple	-20 to 400°C (-4 to 752°F) -100 to 850°C (-148 to 1562°F)
K Thermocouple	-200 to 1300°C (-328 to 2372°F) -200 to 500°C (-328 to 932°F)
L Thermocouple	-200 to 500°C (-328 to 932°F)
U Thermocouple	-200 to 800°C (-328 to 1472°F)

The CN740 Series temperature controllers offer accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the CN740 Series can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or autotuning. Select relay, DC pulse or current output for control methods. The CN740 Series accepts a variety of thermocouple and RTD inputs. Process value and set-point value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.

SPECIFICATIONS
Inputs: Thermocouple, RTD, see chart
Display: Two 4-digit, 7 segment 6.35 mm (0.25′) H LEDs
PV: Red
SV: Green
Resolution: 1 degree
Accuracy: ±0.25% span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, 50/60 Hz
Power Consumption: 5 VA max
Operating Temperature: 0 to 50°C (32 to 122°F)
Memory Backup: Nonvolatile memory
Control Output Ratings:
Relay: SPST, 5A @ 250 Vac resistive
Voltage Pulse: 14 Vdc, 10 to -20% (max 40 mA)
Current: 4 to 20 mA
Communication: RS-485 MODBUS^® communication protocol
Panel Cut-Out: 48 mm square (1.89′ square) Maximum Panel
Thickness: 9.50 mm (0.375′)
Weight: 114 g (4 oz)
Front Panel Rating: IP66

Output Type	Relay, DC Pulse, 4 to 20mA
Measurement Type	Temperature
Control Outputs	1
Form Factor	1/16 DIN
Number of Inputs	1
Input Type	Thermocouple, RTD
Communications	Serial
Supply Voltage Type	AC
Display Type	3.5 Digit Dual Display
