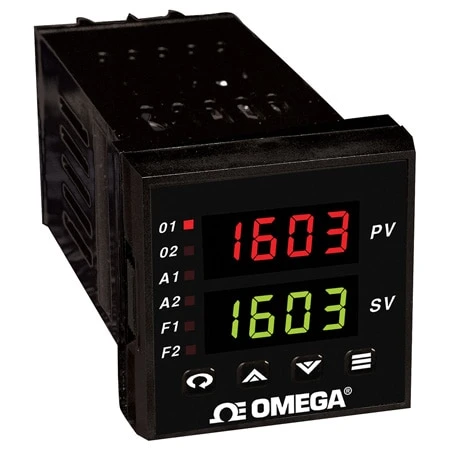

1/16 DIN Universal Input Autotune Controller With Ramp & Soak

Original price was: $356.00.Current price is: $98.99.

Field-Configurable Universal Inputs
Autotuning, Direct or Reverse-Acting for Both Outputs
User-Selectable Ramp to Setpoint
8 Ramp and 8 Soak Segments

Control Outputs

Communications

Supply Voltage Type

Additional Feature

Output Type

Clear

SKU: CN8201-R1 Categories: Control & Monitoring, Controllers, PID Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The CN8200 temperature/process controller is extremely versatile and user-friendly. The operator needs to review only those parameters relevant to the particular application during setup. A dual digital display offers optimum process information at a glance. Individual LED’s identify the status of outputs, alarms, digital communications, and special options. The CN8200 features a NEMA-4X front panel and a universal power supply that accepts 100 to 250 Vac and 120 to 250 Vdc. A 24 Vac/24 Vdc power supply option is also available. Control algorithms available are P, PI, PD, PID, or ON/OFF. The autotune feature automatically sets proportional band, derivative, and integral before the process reaches setpoint. These parameters provide quick stabilization of processes with minimum overshoot, hunting, or cycling.

Eight-level ramp/soak control consisting of 8 ramps and 8 soaks is standard, and includes a decimal display on thermocouple ranges, digital display and signal filtering, and a percentage of power limit setting. The dual control outputs can be configured for a variety of control and alarm applications, and two dedicated alarm outputs are also available. The CN8200 offers a wide range of options, including RS-232 and RS-485 digital communications, five remote analog setpoint ranges, three contact/digital input modes, four transducer excitation voltages, and four auxiliary output ranges.

Specifications

Performance
Accuracy: ±0.2% of full scale, ±1 digit
Setpoint Resolution: 1 count/0.1 count
Repeatability: ±1 count
Temperature Stability: 5 µV/°C (maximum)
TC Cold-Junction Tracking: 0.05°C/°C ambient
Common Mode Rejection: 100 dB
Series Mode Rejection: >70 dB
Process Sampling: 10 Hz (100 ms)

Inputs
Input Type: See Input Table
Digital Input: For remote setpoint, remote standby or ramp/soak run and hold
Thermocouple Lead Resistance: 100 ohms max for rated accuracy
Decimal Position: Selectable

Outputs
Output #1: Reverse or directacting, configured from menu
Output #2: Reverse or directacting, configured from menu
Mechanical Relay: Rated 5 A @120 Vac, 3 A @ 240 Vac, normally open (N.O.), normally closed (N.C.), (output 1); Rated 5 A @120 Vac, 3 A @ 240 Vac, N.O. (output 2)
Current: 4 to 20 mA, 500 ohm max (suffix F1, F2); 4 to 20 mA, 1000 ohm max (suffix FH1, FH2)
Voltage: 20 Vdc pulse
Solid State Relay: SSR, 120/240 Vac, zero voltage switched, rated 1 A continuous, 10 A surge @ 25°C
Alarms: Mechanical relay rated 5 A @ 120 Vac, 3 A @ 240 Vac, N.O.; Optically isolated SSR rated 1 A, 120/240 Vac @ 25°C; dc alarms, 24 Vdc
Transducer Power Supply: 5, 10, 12, 15 Vdc ±10%

Control Characteristics
Setpoint Limits: Limited to configured range for thermocouple and RTD; limited to scaled range
Alarms: Adjustable for high/low; selectable process or deviation
Rate (Derivative): 0 to 2400 seconds
Reset (Integral): 0 to 9600 seconds
Cycle Time: 0.2 to 120 seconds
Proportional Band: 1 to span of sensor
Deadband: negative span to positive span of sensor
Hysteresis: 1 to span of sensor Autotune Damping: Adjustable (low, normal, or high)
Ramp to Setpoint: 1 to 9999 minutes
Autotune: Operator-initiated from front panel
Manual Control: Operator-initiated from front panel General
Power: 100 to 250 V, 50/60 Hz (single-phase), 120 to 250 Vdc, 24 Vac/24 Vdc optional
Display: Dual LED, 4-digit, orange: process display, green: menu/ parameter display; 9.2 mm (0.36′)
Power Consumption: Less than 6 VA (instrument) @ 120 Vac
Weight: 226 g (8 oz)
Panel Cutout: 45 mm (1.771′) square
Dimensions: 53.3 H x 53.3 W x 8.21 mm D (2.1 x 2.1 x 0.72′) bezel
Depth Behind Panel: 100 mm (3.937′)
Front Panel Rating: NEMA-4X
Operating Ambient Range: 0 to 55°C (32 to 131°F)
Humidity: 90% RH max, non-condensing
Memory Protection: Solid-state non-volatile memory
Connections: Screw terminals
Contacts: Twin bifurcated

Ramp/Soak Programming
Intervals: 8
Loops: 0 to 99
Ramp Time: 0 to 9999 minutes
Soak Time: 0 to 9999 minutes
Events/Alarms: 1 to 8
Ramp Setpoint: 1 to 9999 minutes

CN8-SW (Optional Software)
Minimum Hardware and Software Requirements: IBM PC or 100% compatible, Windows 95/98/NT; RS-485 interface or RS-232 to RS-485 converter
Software Compatibility: CN8200 Series controllers
Software Capability: Supports up to 254 CN8200 Series controllers.

Input and Range Table for Universal Input Controller

Input Type	Range
J Iron Constantan	-200 to 760°C (-328 to 1400°F)
K CHROMEGA™-ALOMEGA™	-270 to 1354°C (-454 to 2469°F)
T Copper-Constantan	-270 to 400°C (-454 to 752°F)
N OMEGALLOY™	-268 to 1300°C (-450 to 2372°F)
R Pt/13%Rh – Pt	-50 to 1768°C (-58 to 3214°F)
S Pt/10%Rh – Pt	-50 to 1768°C (-58 to 3214°F)
B Pt/30%Rh – Pt/6%Rh	0 to 1820°C (32 to 3308°F)
C W/5%Re – W/26%Re	0 to 2315°C (32 to 4199°F)
E CHROMEGA™-Constantan	-150 to 1000°C (-238 to 1832°F)
NNM 18% Molybdenem vs Nickel -06% Cobalt	0 to 1410°C (32 to 2570°F)
Platinel II	-100 to 1232°C (-148 to 2250°F)
RTD (3-wire) 100 ohm PT	-200 to 850°C (-328 to 1562°F)
RTD (3-wire) 100 ohm PT	-199.9 to 375.0°C (-199.9 to 707.0°F)
0 to 1 V	Scalable (-1999 to 9999) Selectable
1 to 5 V	Scalable (-1999 to 9999) Selectable
0 to 5 V	Scalable (-1999 to 9999) Selectable
0 to 10 V	Scalable (-1999 to 9999) Selectable
10 to 50 mV	Scalable (-1999 to 9999) Selectable
0 to 50 mV	Scalable (-1999 to 9999) Selectable
0 to 10 mV	Scalable (-1999 to 9999) Selectable
0 to 100 mV	Scalable (-1999 to 9999) Selectable
4 to 20 mA	Scalable (-1999 to 9999) Selectable
0 to 20 mA	Scalable (-1999 to 9999) Selectable

Output Options–No Additional Cost

Option Type	First Output-Heat or Cool (Reverse or Direct) Order Suffix	Second Output- Heat or Cool (Reverse or Direct) Order Suffix
Relay	-R1	-R2
dc Pulse	-DC1	-DC2
1A SSR	-T1	-T2
4 to 20 mA (500 ohm max)	-F1	-F2
4 to 20 mA (800 ohm max)	-FH1	-FH2

Control Outputs	1, 2
Communications	None, Serial
Supply Voltage Type	AC, AC/DC
Additional Feature	None, Alarm Output, RS232, RS485, Remote setpoint
Output Type	Relay, DC Pulse, DC Pulse, Mechanical Relay, 4 to 20mA (500 ohm max.), 4 to 20mA (500 ohm max.), Mechanical Relay, Relay, Mechanical Relay, 1A SSR, 1A SSR, Mechanical Relay, DC Pulse, DC Pulse, DC Pulse, DC Pulse, Mechanical Relay, DC Pulse, 4 to 20mA (500 ohm max.), DC Pulse, 4 to 20mA (500 ohm max.), Mechanical Relay, DC Pulse, Relay, DC Pulse, Relay, Mechanical Relay, Relay, DC Pulse, DC Pulse, 1A SSR, DC Pulse, 1A SSR, Mechanical Relay, 4 to 20mA (500 ohm max.), DC Pulse, Mechanical Relay, 4 to 20mA (500 ohm max.), DC Pulse, 4 to 20mA (500 ohm max.), 4 to 20mA (500 ohm max.), 4 to 20mA (500 ohm max.), 4 to 20mA (500 ohm max.), Mechanical Relay, 4 to 20mA (500 ohm max.), Relay, 4 to 20mA (500 ohm max.), Relay, Mechanical Relay, 4 to 20mA (500 ohm max.), 1A SSR, Current, 1A SSR, Relay, DC Pulse, Mechanical Relay, Relay, 4 to 20mA (500 ohm max.), Relay, 4 to 20mA (500 ohm max.), Mechanical Relay, Relay/Relay, Relay, Relay, Mechanical Relay, Relay, 1A SSR, 1A SSR, DC Pulse, 1A SSR, 4 to 20mA (500 ohm max.), 1A SSR, Relay, 1A SSR, Relay, Mechanical Relay, 1A SSR, 1A SSR, 1A SSR, 1A SSR, Mechanical Relay
Measurement Type	Temperature, Process
Form Factor	1/16 DIN
Number of Inputs	1
Input Type	Thermocouple, RTD, Analog Current/Voltage
Ramp and Soak	Multiple Ramp & Soak
Display Type	3.5 Digit Dual Display
