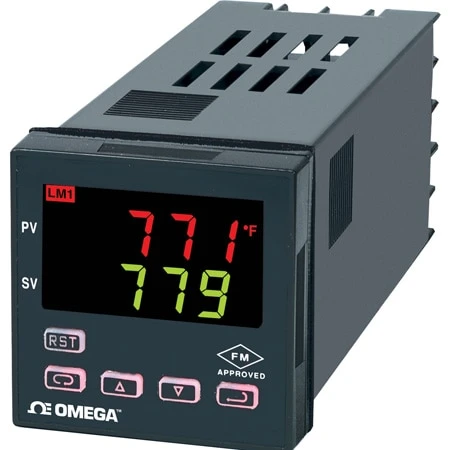

1/16 DIN Universal Process Limit Controller With Illuminated Keys

Original price was: $393.00.Current price is: $95.99.

Dual Display
FM-Approved Limit
Universal Inputs
Illuminated Keys

Control Outputs

Additional Feature

Output Type

Clear

SKU: CN7430 Categories: Control & Monitoring, Controllers, Limit Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The CN7400 Series temperature/process FM-approved limit controllers set a new standard in 1/16 DIN limit controls. They have universal inputs (10 thermocouple and 4 RTD types, voltage, and current). Standard features include remote reset capability. Outputs include normally open (form ‘A’) and normally closed (form ‘B’) relays. Form ‘A’ and form ‘B’ relays can be set up for each setpoint output and logically linked to emulate a form ‘C’ output.

Input Types	Range
K Thermocouple	-200 to 2500°F (-129 to 1371°C)
J Thermocouple	-100 to 1600°F (-73 to 871°C)
T Thermocouple	-350 to 750°F (-212 to 398°C)
E Thermocouple	-100 to 1800°F (-73 to 982°C)
N Thermocouple	-100 to 2372°F (-73 to 1300°C)
R Thermocouple	0 to 3200°F (-17 to 1760°C)
S Thermocouple	0 to 3200°F (-17 to 1760°C)
B Thermocouple	75 to 3308°F (24 to 1820°C)
L (J DIN) Thermocouple	-100 to 1600°F (-73 to 871°C)
C Thermocouple	0 to 4208°F (-17 to 2320°C)
Pt100 RTD (0.00385)	-200 to 875°C (-328 to 1607°F)
Pt100 RTD (0.00392)	-200 to 875°C (-328 to 1607°F)
RTD, 120 Ω Nickel (0.00628)	-80 to 320°C (-112 to 608°F)
RTD, Pt1000 (0.00385)	-200 to 875°C (-328 to 1607°F)
0 to 20 mA, 4 to 20 mA	-1999 to 9999
0 to 10Vdc, -10 to 10 Vdc, -10 to 10 mVdc*	-1999 to 9999

SPECIFICATIONS
Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current Display: Two 4-digit, 7-segment, 7.62 mm (0.3′) high LEDs
Accuracy: ±0.25% of span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20%
Power Consumption: 5 VA max
Operating Temperature: -10 to 55°C (14 to 131°F)
Memory Backup: Non-volatile memory
Relay Control Output Ratings:
Resistive: SPST, 3 A @ 240 Vac
Inductive: 1.5 A @ 240 Vac
Weight: 227 g (8 oz)
Panel Cut-Out: 45 +0.6 mm square (1.77 +0.02′ square)
Maximum Panel Thickness: 6.35 mm (0.25′)
Panel Depth: 133 mm (5.24′)

Control Outputs	1, 2
Additional Feature	None, Retransmission
Output Type	NO relay, NO relay, 0 to 20mA isolated retransmission output, NO relay, NC relay, NO relay, NC relay, 0 to 20mA isolated retransmission output
Measurement Type	Temperature, Process
Form Factor	1/16 DIN
Number of Inputs	1
Input Type	Thermocouple, RTD, Analog Current/Voltage
Supply Voltage Type	AC
Display Type	3.5 Digit Dual Display
