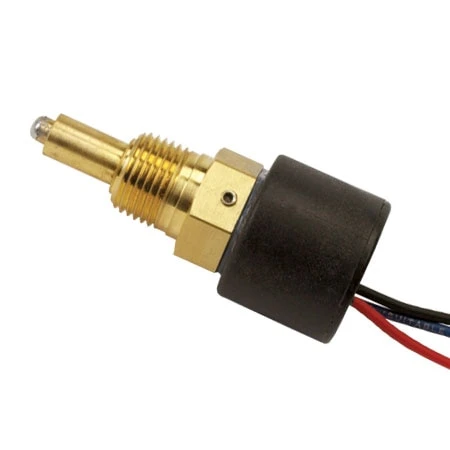

1/2″ NPT Snap-Action Bellows Temperature Switches

Original price was: $115.34.Current price is: $80.74.

High-Quality Snap-Action Switch
10 Amp Contacts
Utilizes Bellows Mechanism to Sense Temperature
Shock and Vibration Resistant

Switch Operation

Clear

SKU: TSW-HT-1C-120R/WL Categories: Control & Monitoring, Process Switches, Temperature Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

Omega’s TSW-HT Series high quality temperature switches utilize a bellows mechanism to sense temperature and are perfect for applications that require an economical solution to simplify temperature control. All switches activate with a rise in temperature and are shock and vibration resistant. TSW-HT Series offer a wide range of temperature pre-set values to select from.

Specifications
Set Point Range: 4 to 149°C (40 to 300°F)
Set Point Tolerance: ±2.8°C (5°F)
Maximum Operating Temperature: 37.7°C (100°F) above set point [163°C (325°F) maximum] Differential: -13.3 to -8.8°C (8 to 16°F)
Current Rating: 10 A @ 250 Vac, 5 A @ 30 Vdc (resistive)
Media Connection: ½ NPT male threads
Circuit Form: SPDT
Electrical Connection: 457 mm (18″) wire leads
Maximum External Pressure: 500 psi

Switch Operation	49°C (120°F), 82°C (180°F), 93°C (200°F), 104°C (220°F), 115°C (240°F), 121°C (250°F)
Switch Type	Fixed Temperature Switch
Contact	10 A SPDT
Supply Voltage	125/250 Vac
Probe Length	25.4mm (1.0")
Probe Diameter	11.2mm (0.44")
Sensor Material	Brass
Minimum Temperature	4°C (40°F)
Maximum Temperature	149°C (300°F)
Additional Features	1/2" NPT, 500 PSI
