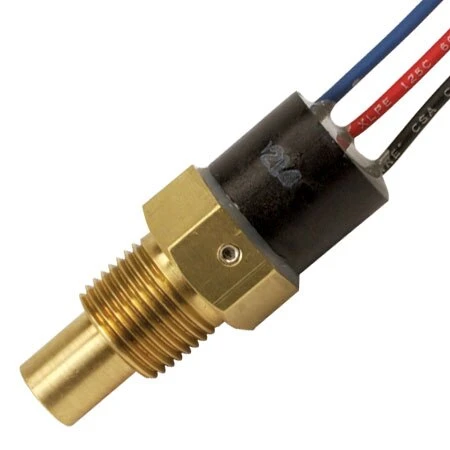

1/2″ NPT Snap-Action Temperature Switches
Original price was: $69.49.$48.64Current price is: $48.64.
- High-Quality Snap-Action Switch
- 5 Amp Contacts
- Shock and Vibration Resistant
- 1/2 NPT Mounting Threads
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Description
Omega’s TSW-TD Series high quality snap-action temperature switches are perfect for applications that require an economical solution to simple temperature control. All switches activate with a rise in temperature and are shock and vibration resistant. TSW-TD Series offer a wide range of temperature pre-set values to select from.
Specifications
Set Point Range: 65 to 149°C (150 to 300°F)
Set Point Tolerance: ±2.8°C (5°F)
Maximum Operating Temperature: 163°C (325°F)
Differential: -13.3 to -8.8°C (8 to 16°F)
Current Rating: 5 A @ 250 Vac, 5 A @ 30 Vdc (resistive)
Media Connection: ½ NPT male threads
Circuit Form: SPDT
Electrical Connection: 457 mm (18″) wire leads
Maximum External Pressure: 2500 psi
| Switch Operation | 82°C (180°F), 93°C (200°F), 104°C (220°F), 115°C (240°F), 121°C (250°F) |
|---|---|
| Switch Type | Fixed Temperature Switch |
| Contact | 5 A SPDT |
| Supply Voltage | 125/250 Vac |
| Probe Length | 16mm (0.63") |
| Probe Diameter | 14.2mm (0.56") |
| Sensor Material | Brass |
| Maximum Temperature | 163°C (325°F) |
| Additional Features | 1/2" NPT, 2500 PSI |
