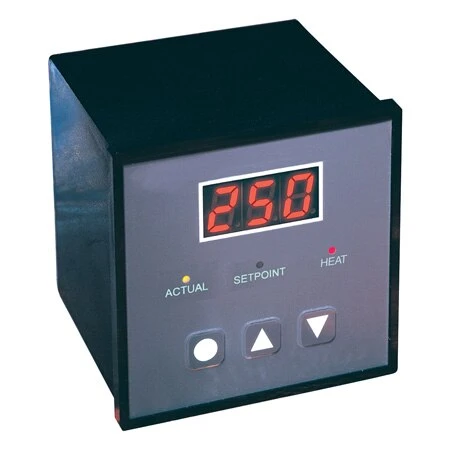

1/4 DIN Digital Temperature And Limit Controllers Family

Original price was: $367.00.Current price is: $95.99.

Large, Easy-to-Read LED Display, Selectable for Either Setpoint or Process Temperature
Type J or K Thermocouple Input For PID Controllers
Type J Thermocouple Input For ON-OFF or LimitControllers
ON-OFF and PID Contollers Can Be Ordered with One or Two Outputs.Output One: 5Amp Relay or 2 Aac SSR. Output Two:5 Amp Relay or 1 Aac SSR

Input Type

Number of Outputs

Output Type

Clear

SKU: CN8102-D1-R2 Categories: Control & Monitoring, Controllers, Limit Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The CN8100 Series may be ordered as either a PID or On/Off controller or as a Limit Safety Device.The ¼ DIN models are low cost and ideal for OEM or replacement applications. They are microprocessor-based and accurate to ±0.3% FS.

As a separate safety feature to your control application, the CN8121-R1 high limit safety device provides reliable high/low temperature limit shut-off control for most machine and process control applications including environmental chambers, furnaces, ovens and packaging machinery. As a high limit device, these controllers have a normally energized SPDT latching output relay which becomes de-energized whenever the process variable (PV) exceeds a selected setpoint value. Reset of the latching output relay is done from a reset pushbutton on the front panel of the controller.

Input Type	J, K Thermocouple, J Thermocouple
Number of Outputs	2, 1
Output Type	DC pulse, 5A Relay, AC SSR, Dual DC Pulse, DC pulse, AC SSR, 5A Relay, 5A Relay, 5A Relay, AC SSR, AC SSR, DC pulse, AC SSR, 5A Relay, AC SSR, AC SSR, DC pulse, 5A Relay1, 5A Relay, DC pulse
Measurement Type	Temperature
Number of Inputs	1
DIN Size	1/4 DIN
Display Type	4 Digit Single Display
Max Sampling Rate	1 Hz
Supply Voltage Type	AC
Supply Voltage	100 to 240 Volts
Communincations	Not Applicable
Accuracy Rating	Good
Other Features	High/Low Limit and FM Approved
