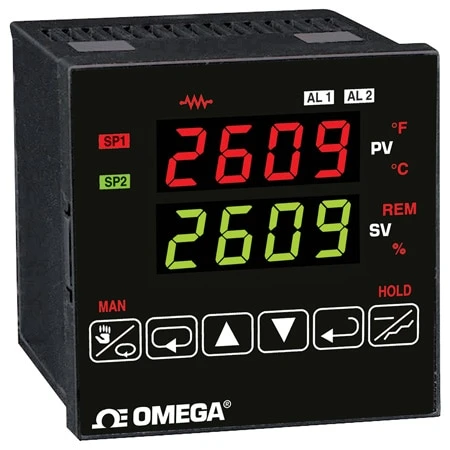

1/4 DIN Temperature/Process Ramp/Soak Controller With Fuzzy Logic

Original price was: $305.00.Current price is: $96.99.

Dual-Display NEMA 4X (IP65) Front Panel Resists Dust and Moisture
Front Panel Programmability
16 Ramp/Soak Segments with Program End Control
Fuzzy Logic

Number of Outputs

Output Type

Other Features

Clear

SKU: CN72033 Categories: Control & Monitoring, Controllers, PID Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The CN72000 Series temperature/ process controllers set a new quality, versatility, ease-of-use and value standards. Including many high-level standard features, additional function setup items appear in the control menu when a function is selected, simplifying the selection process. Units feature a universal input for thermocouple Types J, K, E, T, L, N, B, C, S and R, RTD’s, differential input (-10 to 10 mVdc); and process input (0 to 20 mAdc, 0 to 10 Vdc). A standard 24 V isolated, regulated power supply is included; operates most standard 4 to 20 mA transmitters. Standard features include autoune, fuzzy logic, fully adjustable PID, auto/manual control with smooth transfer and front panel activation key, percent output indicator, peak and valley indicator, loop break protection and indication. For process inputs, the display is fully programmable from -1999 to 9999 with selectable decimal point location. Most thermocouple and RTD inputs show whole or tenth degree displays. The CN72000 Series can be programmed for on/off, PID, heat/cool, or latching alarm. All outputs are isolated from the inputs. Outputs include 10 A relay, and scalable 0 to 20 mAdc.

Input Types	Range
K Thermocouple	-129 to 1371°C (-200 to 2500°F)
J Thermocouple	-73 to 871°C (-100 to 1600°F)
T Thermocouple	-212 to 398°C (-350 to 750°F)
E Thermocouple	-73 to 982°C (-100 to 1800°F)
N Thermocouple	-73 to 1300°C (-100 to 2372°F)
R Thermocouple	-17 to 1760°C (0 to 3200°F)
S Thermocouple	-17 to 1760°C (0 to 3200°F)
B Thermocouple	24 to 1820°C (75 to 3308°F)
L (J DIN) Thermocouple	-73 to 871°C (-100 to 1600°F)
C Thermocouple	-17 to 2320°C (0 to 4208°F)
Pt100 RTD (0.00385)	-200 to 875°C (-328 to 1607°F)
Pt100 RTD (0.00392)	-200 to 875°C (-328 to 1607°F)
RTD, 120 Ω Nickel (0.00628)	-80 to 320°C (-112 to 608°F)
RTD, Pt1000 (0.00385)	-200 to 875°C (-328 to 1607°F)
0 to 20 mA, 4 to 20 mA	-1999 to 9999
0 to 10Vdc, -10 to 10 Vdc, -10 to 10 mVdc*	-1999 to 9999

SPECIFICATIONS
Selectable Inputs: Thermocouple, RTD, DC voltage or DC current
Input Impedance:
    Thermocouple: 3 MΩ minimum
    Voltage: 5000 Ω
    Current: 10 Ω
    RTD Current: 200 µA maximum
Display: Two 4-digit, 7-segment, 6.35 mm H (0.25′) LEDs
Accuracy: ±0.25% of span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz
Single Phase: 132 to 240 Vdc, nominal, 10 to 20%
Operating Temperature: -10 to 55°C (14 to 131°F)
Control Output Ratings:
    Relay: SPDT, 10 A @ 240 Vac
    Resistive: 1/2 hp @ 120 Vac, 1/3 hp @ 240 Vac
    Alarm Relay: SPST, 3 A @ 240 Vac resistive
    Proportional Current (Isolated): 0 to 20 mA DC, scalable into 600 O maximum
    SSR: 2.5 A @ 240 Vac at 25°C (77°F); derates to 1.25 A @ 55°C (130°F)
    DC Pulse (Isolated): 15 Vdc @ 20 mA
Weight: 369 g (13 oz)

Number of Outputs	2, 3, 4
Output Type	Dual output 2 relay/DC Pulse, Dual output 2 AC SSR/DC Pulse, Dual output 2 AC SSR/DC Pulse, Retransmission output, 0 to 20 mA, Dual output 2 AC SSR/DC Pulse, Retransmission output, 0 to 10 Volts, Dual output 2 relay/DC Pulse, Retransmission output, 0 to 20 mA, Dual output 2 relay/DC Pulse, Retransmission output, 0 to 10 Volts, Dual output 0 to 20mA and relay/DC Pulse, Dual output 0 to 20mA and relay/DC pulse, Retransmission output, 0 to 20 mA, Dual output 0 to 20mA and relay/DC Pulse, Retransmission output, 0 to 10 Volts, Dual output two 0 to 20mA relay/DC Pulse, Dual output two 0 to 20mA, Dual output two 0 to 20mA, Retransmission output, 0 to 20 mA, Dual output two 0 to 20mA, Retransmission output, 0 to 10 Volts, Dual output 2 AC SSR/DC Pulse with alarm, Single output relay/DC Pulse with alarm, Single output relay/DC Pulse with alarm, Retransmission output, 0 to 10 Volts, Dual output 2 relay/DC Pulse with alarm, Dual output 2 relay/DC Pulse with alarm, Retransmission output, 0 to 20 mA, Dual output 2 relay/DC Pulse with alarm, Retransmission output, 0 to 10 Volts, Single output 0 to 20mA with alarm, Dual output two 0 to 20mA relay/DC Pulse with alarm, Dual output two 0 to 20mA relay/DC Pulse with alarm, Retransmission output, 0 to 20 mA, Dual output two 0 to 20mA relay/DC Pulse with alarm, Retransmission output, 0 to 10 Volts, Dual output two 0 to 20mA with alarm, Dual output two 0 to 20mA with alarm, Retransmission output, 0 to 20 mA, Dual output two 0 to 20mA with alarm, Retransmission output, 0 to 10 Volts
Other Features	Not Applicable, 4-stage remote setpoint, Remote setpoint,0 to 20 mA, 4-stage remote setpoint and Remote setpoint,0 to 20 mA, Remote setpoint,0 to 10 Vdc, 4-stage remote setpoint and Remote setpoint,0 to 10 Vdc, 4-stage remotesetpoint and Remote setpoint,0 to 10 Vdc
Measurement Type	Temperature and Process
Input Type	Thermocouple, RTD, MA, MV and 10V
Number of Inputs	1
DIN Size	1/4 DIN
Display Type	4 Digit Dual Display
Max Sampling Rate	1 Hz
Supply Voltage Type	AC
Supply Voltage	100 to 240 Volts
Communincations	Not Applicable
Accuracy Rating	Better
