1/8 DIN Digital Panel Meters For Process Inputs

Description

The DP63800 series has been discontinued. Please see the Platinum Series as a possible alternative or contact our sales department.

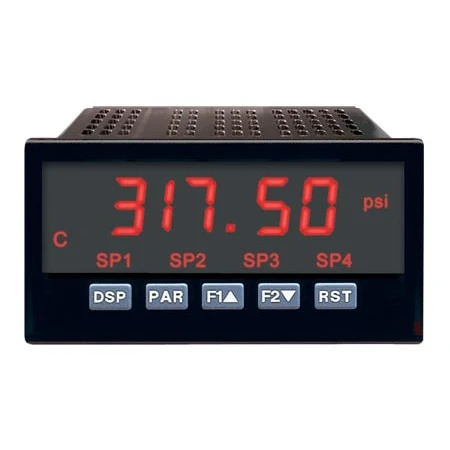

The DP63800 Series panel meters offer many features and performance capabilities to suit a wide range of industrial applications. Models include universal DC process inputs. The optional plug-in output cards allow the opportunity to configure the meter for present applications while providing easy upgrades for future needs. The meters have a bright 14 mm (0.56″) LED display. The unit is available with a red, sunlight-readable or a standard green LED. The intensity of display can be adjusted from dark-room- to sunlight-readable, making it ideal for viewing in variable light applications.
The meters provide a max and min reading memory with programmable capture time. The capture time is used to prevent detection of false max or min readings which may occur during start-up or unusual process events.
The meters have 4 setpoint outputs, implemented on plug-in option cards. The plug-in cards provide dual form “C” relays (5 A), quad form “A” (3 A), or either quadsinking or quad-sourcing open collector logic outputs. The setpoint alarms can be configured to suit a variety of control and alarm requirements. Communication and bus capabilities are also available as option cards. These include RS232, RS485, and MODBUS.
