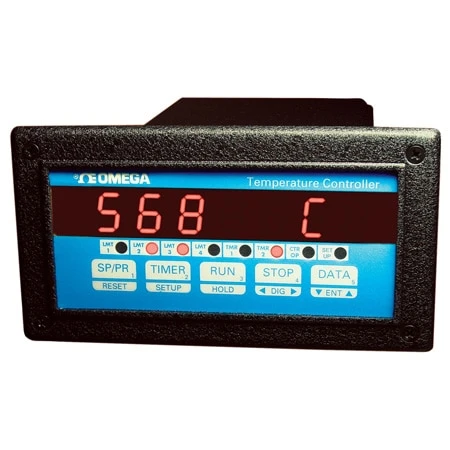

1/8 DIN Temperature And Process Profile Ramp And Soak Controller

Original price was: $373.01.Current price is: $96.99.

Temperature/Process Input
Ramped On/Off Control
Five Ramp and Soak Profiles, Each up to 10 Segments
Rate of Change and Min or Max Display

Measurement Type

Input Type

Number of Outputs

Output Type

Supply Voltage Type

Supply Voltage

Other Features

Clear

SKU: CN1501-TC Categories: Control & Monitoring, Controllers, PID Controllers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

The CN1501 indicator offers sophisticated microprocessor-based temperature control with ramp and soak, in a convenient 1/8 DIN (cutout) case. The CN1501 can store up to five ramp and soak profiles in memory each profile can have up to 10 ramp/soak segments. The CN1501 uses ramped on-off control to provide optimum temperature stability.

The CN1501 can display average rate of temperature change per minute, as well as instantaneous temperature. Low and high peaks are constantly monitored, and can be displayed at the touch of a key. Two programmable timers are also featured (second timer is also used for On/Off control).These timers can be used as timer or time/temperature based alarms.

Examples of pricing for popular models is referenced in the “To Order” box. Use the “Part Number Builder” below to get pricing for all available models.

Measurement Type	Temperature, Process
Input Type	J, K, T, E Thermocouple, B Thermocouple, MA, MV, R Thermocouple, RTD, S Thermocouple, Thermistor, 10V
Number of Outputs	2, Not Applicable, 6, 1
Output Type	Open Collector, Relay, Not Applicable, Four 1 A alarm relays and two dc Pulse drivers, DC Pluse, 4 DC pulse drivers for alarms, 2 DC pulse for timers, 5 Vdc Drive
Supply Voltage Type	AC, DC
Supply Voltage	100 to 120 Volts, 100 to 240 Volts, 8 to 15 Volts, 120 Volts
Other Features	Not Applicable, Relay Alarm, DC Pulse Alarm
Number of Inputs	1
DIN Size	1/8 DIN
Display Type	4 Digit Single Display
Max Sampling Rate	1 Hz
Communincations	Not Applicable
Accuracy Rating	Good
