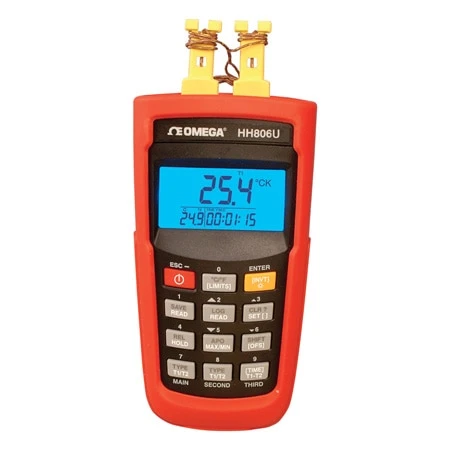

2 Channel 7 Thermocouple Types Wireless And USB Datalogger

Description

The HH806 represents the top ofthe line in the HH800 series ofhandheld thermometers. All of theHH806 versions feature exceptional0.05% basic accuracy and include atriple display as well as data loggingcapabilities. The HH806U andHH806W can both store up to 128samples on demand, at the press ofa button and up to 1,024 in datalogging mode, at a user specifiedlogging interval. The HH806AU andHH806AW expand the data loggingcapabilities further and allowstorage of up to 256 samples ondemand and up to 16,000 in datalogging mode. All versions of theHH806 feature three easy to readdisplays. Two 41/2 digit displays areselectable for T1 or T2 and the third6 digit display can be used forT1-T2 or to show the current dateand time. Windows software isavailable for all models and includedwith the HH806AW. Software is compatible with Windows 10.

SPECIFICATIONS
Measurement Range:
&nbsp&nbsp&nbsp&nbspType K: -200 to 1372°C (-328 to 2501°F)
&nbsp&nbsp&nbsp&nbspType J: -210 to 1200°C (-346 to 2192°F)
&nbsp&nbsp&nbsp&nbspType T: -200 to 400°C (-328 to 752°F)
&nbsp&nbsp&nbsp&nbspType E: -220 to 1000°C (-364 to 1832°F)
&nbsp&nbsp&nbsp&nbspType R: 0 to 1767°C (32 to 3212°F)
&nbsp&nbsp&nbsp&nbspType S: 0 to 1767°C (32 to 3212°F)
&nbsp&nbsp&nbsp&nbspType N: -50 to 1300°C (-58 to 2372°F)
Accuracy: Stated accuracy at 23°C ±5°C, Type K/J/T/E: ±(0.05% rdg + 0.3°C) -50 to 1372°C ±(0.05% rdg + 0.7°C) -50 to -210°C ±(0.05% rdg + 0.6°F) -58 to 2501°F ±(0.05% rdg + 1.4°F) -58 to -346°F
Type N: ±(0.05% rdg + 0.8°C) -50 to 0°C ±(0.05% rdg + 0.4°C) 0 to 1300°C ±(0.05% rdg + 1.6°F) -58 to 32°F ±(0.05% rdg + 0.8°F) 32 to 2372°F
Type R/S: ±(0.05% rdg + 2 0°C to 1767°C ±(0.05% rdg + 4 32°F to 3212°F
Operating Environment: 0 to 50°C (32 to 122°F) at Storage Temperature: -20 to 60°C (-4 to 140°F), 0 to 80% RH with battery removed
Battery: 4 x 1.5V “AAA” (included)
Dimensions: 160 H x 83 W x 38 mm D (6.3 x 3.3 x 1.5″)
Wireless Features:
&nbsp&nbsp&nbsp&nbspFrequency Range: USA 900 MHz European 868.0 to 868.6 MHz
&nbsp&nbsp&nbsp&nbspCurrent Consumption: 5 to 20 mA
&nbsp&nbsp&nbsp&nbspApproximate Range: 25 m (75′)
