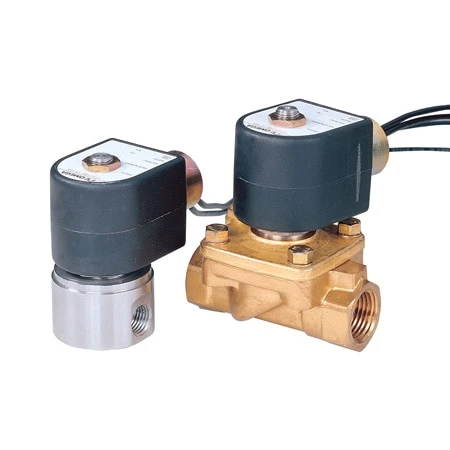

2-Way, NC, Brass & SS, General Purpose Solenoid Valves

Original price was: $176.82.Current price is: $97.99.

Available Stainless Steel Valve Body Resists Corrosion
NEMA-4 (IP65) Housing Standard
Mounts in Any Position
Rated for Continuous Duty

Body Material

Valve Type

Wetted Materials

Flow Coefficient (Cv)

Max Operating Pressure

Media Type

Features

Clear

SKU: SV127 Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

TWO WAY VALVES
SV120 Series: Stainless Steel, Normally Closed
SV130 Series: Stainless Steel, Normally Open
SV200 Series: Brass, Normally Closed
SV210 Series: Brass, Normally Open
Two-way solenoid valves cover most industrial laboratory applications. A two-way valve controls the flow of fluids through a single passage. It has two ports, an inlet (1) and an outlet (2). A normally closed valve does not pass fluid unless it is energized. A normally open valve operates in the opposite manner.

SPECIFICATIONS
Wetted Parts: SV100 Series: stainless steel, copper and seal; SV200 Series: brass, stainless steel, copper and seal.
Medium: Liquid or gases (SV101-105, 107-113, Filter 40 microns)
Max. Static Pressure: 1.5 times max. psid, vacuum (>5 microns ABS)
Ambient Temp.: 15 to 150°F (-9 to 50°C)
Mounting Pipe mounting, any direction
Power: 10 Watts, 120 Vac coils, 50-60 Hz

SPECIAL PURPOSE SOLENOID VALVES
For Steam, Hot Water, Anti-Water Hammer, 3-Way, 4-Way and Selectable Service
SV220 Series: 2-Way, Hot Water, Brass, Normally Closed
SV230 Series: 2-Way, Steam, Brass, Normally Closed
SV240 Series: 3-Way, General Purpose, Brass, Normally Closed
SV250 Series: 3-Way, Selectable Purpose, Brass
SV260 Series: 3-Way, General Purpose, Brass, Normally Closed
SV270 Series: 4-Way, Air, Selectable Purpose, Aluminum, Normally Closed
SV280 Series: 4-Way, Anti-Waterhammer, Brass, Normally Closed
SV290 Series: 4-Way, Anti-Waterhammer, Brass, Normally Open
3-WAY CONTROL
A three-way valve is normally used to control larger values; it has an inlet port, an exhaust port, and a common cylinder port.
4-WAY CONTROL
A four-way valve has an inlet port (1), two cylinder ports (2 and 4), and two exhaust ports (3 and 5). They are generally used to control double-acting actuators.

SPECIFICATIONS
Wetted Parts: SV200: brass, stainless steel, copper and seal (SV242 acetal additional) (SV271: aluminum, acetal, stainless steel, copper, and seal) (SV281,282, FKM additional).
Medium: Liquids or gases
Max. Static Pressure: 5 x Max psid
Ambient Temp.: 15 to 122°F (-9 to 50°C)
Mounting: Pipe mounting, any direction
Power: 10 watts, 120 Vac, Class F (PV231 to 235, 22 watts, 120 Vac Class H)

Body Material	SS, Brass
Valve Type	Direct Acting, Pilot Operated
Wetted Materials	SS, Copper, FKM, SS, Copper, KEL-F, SS, Copper, PTFE
Flow Coefficient (Cv)	0.75, 0.06, 0.1, 0.18, 0.28, 0.4, 0.76
Max Operating Pressure	40 psi, 1,000 psi, 450 psi, 350 psi, 275 psi, 200 psi, 90 psi, 1,500 psi
Media Type	Liquid, Gas, Liquid or gases
Features	AC/DC Coil Sold Separately, 120 Vac
Category	Solenoid
Valve Start Position	Normally closed
Process Connection Size	1/4"
Max Process Temperature	50 °C (122 °F)
