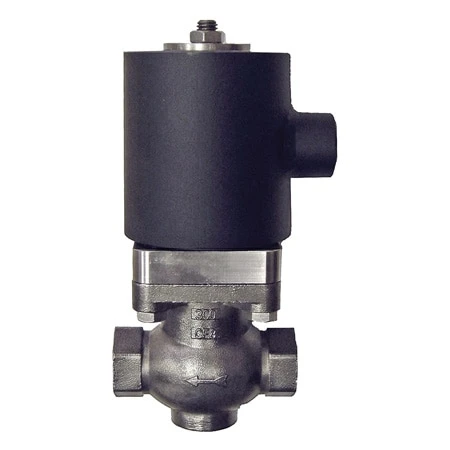

2-Way, NC, Direct Acting, 316 SS, High Pressure Solenoid Valves

Original price was: $324.00.Current price is: $98.99.

Stainless Steel Body
Models for Gas or Liquid
½ to 2″ Ports
Pressures up to 1500 psi (Depending on Model)

Process Connection Size

Flow Coefficient (Cv)

Max Operating Pressure

Media Type

Features

Clear

SKU: SVH-144G Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The powerful, full port SVH-140 Series is great for a wide range of flow rates, temperatures, and a wide range of fluids and gases. It has become a popular choice for cryogenic conditions and applications that need to control higher pressures. This pilot assisted, direct operated valve is available in larger pipe sizes (up to 2″) and for inlet pressures up to 1500 psig. The versatile SVH-140 requires no minimum pressure for opening, and has the option to be universally mounted (normally closed or normally open). Other uses of the SVH-140 include controlling the flow of corrosive fluids, deionized water, condensate, ammonias, vegetable oils, fuel oils, hydrogen, cryogenics, flammable liquids and gases and other gases or liquids compatible with materials of construction.

Specifications
Materials Of Construction
Valve Body: 316 SS (CF8M)
Piston: 303 SS
Pistons Rings: PTFE
Plunger: 430 SS
Pilot Valve: 303 SS
Bonnet Tube: 304 SS
Bonnet Base Flange: 304 SS
Spring: 302 SS
Body Seal: Non-asbestos gasket
Valve Disc: PTFE
Electrical
Coil: Encapsulated Class “H”, 457 mm 18″ leads all AC/DC voltages
Coil Enclosure: Carbon steel-coil enclosure is completely seal-welded NEMA 4,7

Process Connection Size	1 1/2", 1/2", 3/4", 1", 2"
Flow Coefficient (Cv)	25.0, 3.5, 7.5, 13.0, 48.0
Max Operating Pressure	1,200 psi, 1,500 psi
Media Type	Gas, Liquid
Features	AC/DC Coil Sold Separately, 120 Vac, AC/DC Coil Sold Separately, 120 Vdc, AC/DC Coil Sold Separately, 240 Vac, AC/DC Coil Sold Separately, 24 Vdc
Category	Solenoid
Valve Start Position	Normally closed
Body Material	316 SS
Valve Type	Direct Acting
Wetted Materials	300 Series SS, 430 SS, PTFE
Max Process Temperature	149 °C (300 °F)
