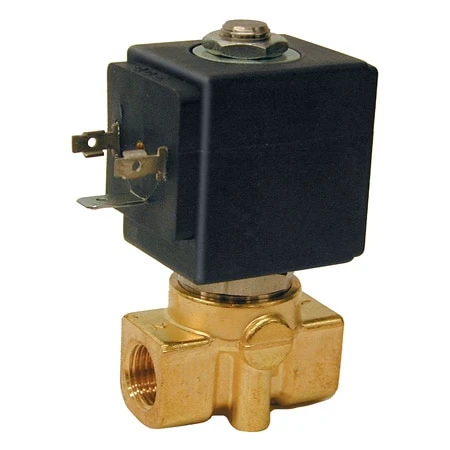

2-Way, NC, Direct Acting, Brass, High Pressure Solenoid Valve

Original price was: $159.89.Current price is: $97.99.

Ideal for Compressed Air, Inert Gas, Water and Synthetic Oils
Maximum Pressure 1450 psi (100 bar)
Process Temperature to 182°C (360°F)
8 W, AC Coils Standard, 12 Coil Available

SKU: SV3321 Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SV-3321 2-way solenoid valves are high pressure directacting valves featuring brass, stainless steel construction and PTFE seal material. The temperature range from -23 to 182°C (-10 to 360°F) is ideal for neutral media such as compressed air, inert gases, water, and synthetic oils. A strain-relief connector is supplied with each unit. A ½” conduit plug is also available.

Category	Solenoid
Valve Start Position	Normally closed
Body Material	Brass
Valve Type	Direct Acting
Wetted Materials	SS, Copper, PTFE
Process Connection Size	1/4"
Flow Coefficient (Cv)	0.07
Max Operating Pressure	AC 0 psi DC 1,300 psi
Max Process Temperature	182 °C (360 °F)
Media Type	Liquid, Gas
Features	AC/DC Coil Sold Separately
