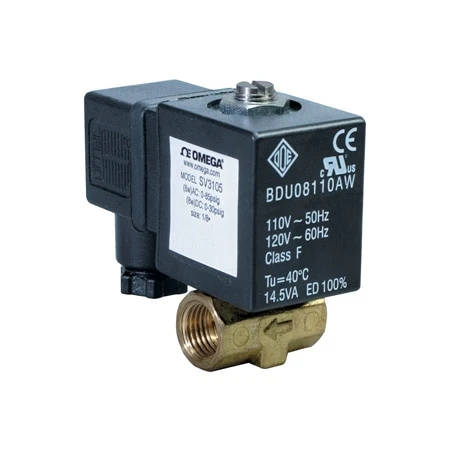

2-Way, NC, Direct Acting, Brass, Solenoid Valves

Original price was: $86.37.Current price is: $60.46.

Ideal for Compressed Air, Inert Gas, Water, and Synthetic Oils
Normally Closed
Process Temperature to 137°C (280°F)
8 W AC Coils Standard

Process Connection Size

Flow Coefficient (Cv)

Max Operating Pressure

Clear

SKU: SV3109 Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SV-3100 Series 2-way solenoid valves are direct-acting valves featuring brass and stainless steel construction and FKM seal material.The temperature range of -10 to 137°C (14 to 280°F) is ideal for neutral media such as compressed air, inert gases, water, and synthetic oils.

SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
Maximum Process Temperature: 137°C (280°F) due to FKM O-ring
Maximum Ambient Temperature: Coil dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time (msec):
   AC: 10 to 20
   DC: 20 to 80 depending on orifice and pressure
Closing Time (msec):
   AC and DC: Approx. 20 to 30
Cycling Rate: Approx. 1000 cpm
Duty Cycle: Continuous (100%)
Coil Molding Material:
   Black Polyester (Class F): SV8COIL-115AC, SV8COIL-24DC/60HZ, SV8COIL-24AC/50 to 60HZ, SV8COIL-220AC
   Black Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC
   Black Polyphenylensulphide (Class H): SV8COIL-115/60HZ

Materials of Construction Body: Brass
Armature Tube: Brass
Fixed Core: Stainless Steel 400
Plunger: Stainless Steel 400
Spring: Stainless Steel 300
Shading Ring: Copper
Orifice: Brass
Sealing Material: FKM

Coil Specifications
Coil: 8 W
Inrush: 25 VA
Holding: 14 VA

Process Connection Size	1/4", 1/8"
Flow Coefficient (Cv)	0.24, 0.1, 0.14, 0.35, 0.15
Max Operating Pressure	AC 175 psi DC 85 psi, AC 430 psi DC 220 psi, AC 260 psi DC 150 psi, AC 85 psi DC 30 psi
Category	Solenoid
Valve Start Position	Normally closed
Body Material	Brass
Valve Type	Direct Acting
Wetted Materials	SS, Copper, Brass, FKM
Max Process Temperature	137 °C (280 °F)
Media Type	Liquid, Gas
Features	AC/DC Coil Sold Separately
