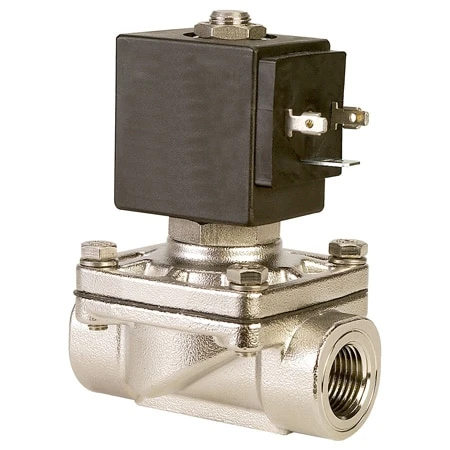

2-Way, NC, Direct Acting, SS, Solenoid Valves

Original price was: $363.00.Current price is: $95.99.

Stainless Steel Solenoid Valve
Lead Free
Normally Closed
Ideal for Hot Water and Steam

Process Connection Size

Flow Coefficient (Cv)

Max Operating Pressure

Clear

SKU: SV171 Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SV170 Series 2-way 316 SS solenoid valves are internally piloted. They feature 316 stainless steel construction and FKM seal material. The temperature range of -10 to 138°C (14 to 280°F) and the FKM O-ring make these valves ideal for many aggressive liquids and gases. A strain-relief connector is supplied with each unit. A ½” conduit plug is also available.

SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
Maximum Process Temperature: -10 to 138°C (14 to 280°F) FKM O-ring
Maximum Ambient Temperature: Coil dependent (see ratings on coils)
Voltage Tolerance: ±10% AC, ±5% DC
Opening Time (ms): Approximately 100 to 200
Closing Time (ms): Approximately 200 to 1200
Cycling Rate: Approximately 60 cpm
Duty Cycle: Continuous (100%)
Coil Molding Material:
    Black Polyphenylensulphide (Class H):
    SV8COIL-115/60 HZ
    SV8COIL-220/60 HZ
    Black Epoxy Resin (Class H):
    All 14 W coils, NEMA 4
Coil Molding Material:
    Black Polyphenylensulphide (Class H):
    SV8COIL-115/60 HZ
    SV8COIL-220/60 HZ
    Black Epoxy Resin (Class H):
    All 14 W coils, NEMA 4

Process Connection Size	3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2"
Flow Coefficient (Cv)	2.8, 3.4, 4.1, 9.7, 20.1, 23.4
Max Operating Pressure	AC 200 psi DC 85 psi, AC 200 psi DC 45 psi, AC 200 psi DC 0 psi
Category	Solenoid
Valve Start Position	Normally closed
Body Material	316 SS
Valve Type	Direct Acting
Wetted Materials	FKM
Max Process Temperature	137 °C (280 °F)
Media Type	Hot Water, Steam
Features	AC/DC Coil Sold Separately
