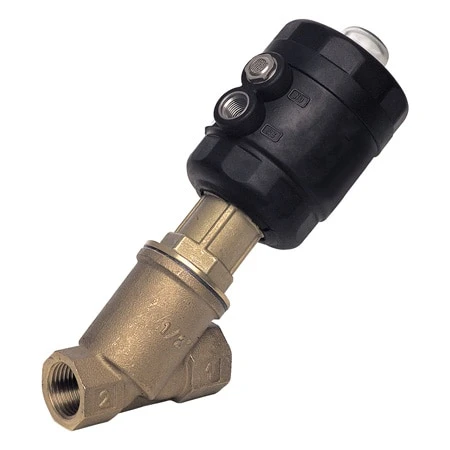

2-Way, NC, Pilot Operated, Bi-Driectional, Bronze Compact Valve

Original price was: $280.68.Current price is: $97.99.

Ideal Alternative to Complex Actuated Ball Valves
Ideal for Neutral and Some Aggressive Fluids
Optical Position Indication Standard
Compact Design for Bi-Directional Flow

Process Connection Size

Flow Coefficient (Cv)

Clear

SKU: AAV-1020CB Categories: Angle Body Piston Valves, Flow Instruments, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The AAV-1000CB Series airoperated bronze angle seat valves are ideal for use in a wide range of industrial applications that require Bi-Directional flow in a compact design. This unique construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, vacuum. The valve stem has a self-aligning gland which together with the floating seal assures maximum integrity. The PTFE seal material is used as standard for maximum fluid compatibility.

SPECIFICATIONS
Media Temperature: -10 to 180°C (14 to 360°F)
Ambient Temperature: -10 to 60ºC (14 to 140ºF)
Body Material: Bronze
Seal Material: PTFE
Pilot Media: Air, inert gases, water, maximum 60°C (140°F)
Valve Position: Normally closed
Flow Direction: Bi-directional
Anti-Water Hammer: 2 —>1 flow only

Process Connection Size	3/4", 1/2", 1"
Flow Coefficient (Cv)	8.6, 4.6, 19.3
Category	Angle Body Piston
Body Material	Bronze
Wetted Materials	PTFE
Pilot Pressure Range	75 to 150 psi
Max Operating Pressure	230 psi
Max Process Temperature	180 °C (360 °F)
Media Type	Liquid, Gas
Features	Compact Design, Bi-Directional
