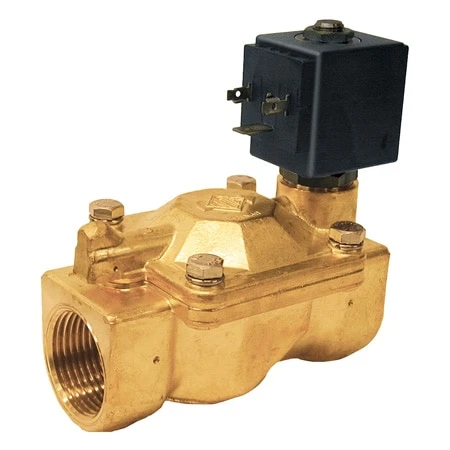

2-Way, NC, Pilot Operated, Brass, Solenoid Valves

Original price was: $266.11.Current price is: $98.99.

Normally Closed or Normally Open
Ideal for Compressed Air, Inert Gas, Synthetic Oils and Water
120 Vac Standard (220 Vac and DC Coils are Optional)
All Coils are CE

Valve Start Position

Process Connection Size

Flow Coefficient (Cv)

Max Operating Pressure

Clear

SKU: SV6004 Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SV6000 Series 2-way solenoid valves are internally piloted valves featuring Brass, stainless steel construction and FKM seal material. The temperature range from -10 to 137°C (14 to 280°F) and FKM O-ring material is ideal for neutral media such as compressed air, inert gases, synthetic oils and water. Buna O-rings are good for compressed air, inert gases, and water. Buna O-rings have a more limited temperature range from -10 to 90°C (14 to 195°F).
A strain-relief connector is supplied with each unit. A ½” conduit plug is also available.

SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
Operating Ambient:
FKM O-Ring: -10 to 137°C (14 to 280°F)
Buna O-ring: -10 to 90°C (14 to 195°F). Buna O-rings are not recommended for synthetic oils. Use FKM O-rings.
Max Ambient Temp.: Coil Dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time (msec): 200 to 500 approximately
Closing Time (msec): 100 to 4000 approximately
Cycling Rate: Approx. 10 to 50 cpm
Duty Cycle: Continuous (100%)

Materials of Construction
   Body: Brass
   Armature Tube: Stainless Steel 300
   Fixed Core: Stainless Steel 400
   Plunger: Stainless Steel 400
   Spring: Stainless Steel 300
   Shading Ring: Copper
   Orifice: Brass
Coil Molding Material:
   Black Polyester (Class F): SV8COIL-115AC, SV8COIL-24DC/60HZ, SV8COIL-220AC
   Black Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC, All 12 Watt coils
   Black Polyphenylensulphide (Class H): SV8COIL-115/60HZ
   Black Epoxy Resin (Class H): All 14 Watt coils

Valve Start Position	Normally closed, Normally Open
Process Connection Size	3/4", 1/4", 3/8", 1/2", 1", 1 1/4", 1 1/2", 2"
Flow Coefficient (Cv)	9.8, 1.5, 1.7, 14.0, 28.0, 36.0, 53.0
Max Operating Pressure	AC 230 psi DC 230 psi, AC 300 psi DC 150 psi, AC 150 psi DC 150 psi
Category	Solenoid
Body Material	Brass
Valve Type	Pilot Operated
Wetted Materials	SS, Copper, Buna
Max Process Temperature	90 °C (195 °F)
Media Type	Liquid, Gas
Features	AC/DC Coil Sold Separately
