2-Way, NC, Pilot Operated, Bronze Valve
Original price was: $319.22.$96.99Current price is: $96.99.
- Ideal Alternative to Complex Actuated Ball Valves
- Ideal for Neutral and Some Aggressive Fluids
- Optical Position Indication Standard
- Bronze and PTFE Wetted Parts
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

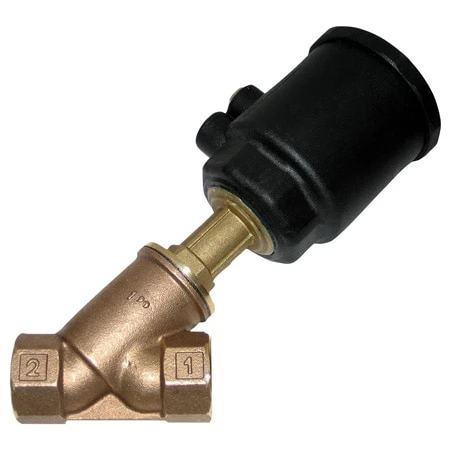

The AAV-1000 Series of air operated bronze angle seat valves are ideal for use in a wide range of industrial applications. The unique construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, and vacuums. The valve stem has a self-aligning gland which together with the floating seal assures maximum integrity. The PTFE seal material is used as standard for maximum fluid compatibility.
SPECIFICATIONS
Media Temperature: -10 to 180°C (14 to 360°F)
Ambient Temperature: -10 to 60ºC (14 to 140ºF)
Body Material: Bronze
Seal Material: PTFE
Pilot Media: Air, inert gases, water, maximum 60°C (140°F)
Valve Position: Normally closed
Flow Direction: 1 —> 2 over seat
| Process Connection Size | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" |
|---|---|
| Flow Coefficient (Cv) | 4.6, 8.6, 19.3, 29, 44.8, 56.9 |
| Pilot Pressure Range | 25 to 150 psi, 45 to 150 psi |
| Max Operating Pressure | 290 psi, 230 psi, 160 psi |
| Category | Angle Body Piston |
| Body Material | Bronze |
| Wetted Materials | PTFE |
| Max Process Temperature | 180 °C (360 °F) |
| Media Type | Liquid, Gas |
| Features | Uni-Directional |
