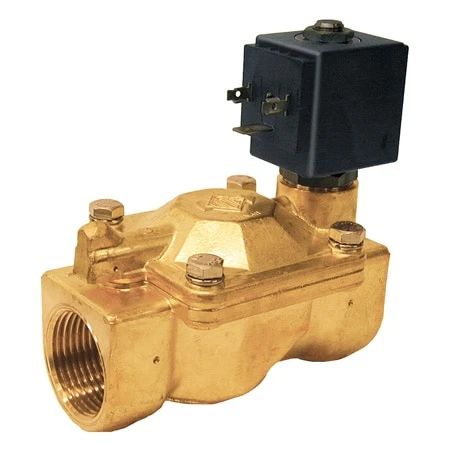

2-Way, NC, Pilot Operated, Lead-Free Brass, Solenoid Valves

Original price was: $309.00.Current price is: $99.99.

NSF61-G Approved Materials
Normally Closed
Ideal for Compressed Air, Inert Gas, Synthetic Oils and Water
120 Vac Standard (220 Vac and DC Coils are Optional)

Process Connection Size

Flow Coefficient (Cv)

Clear

SKU: SV6104A Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

SV6100A Series 2-waysolenoid valves are internallypiloted valvesfeaturing lead-free Brass,stainless steel construction andEPDM seal material. Thetemperature range from-10 to 137°C (14 to 280°F) andEPDM O-ring material is ideal forneutral media such as compressedair, inert gases, synthetic oils andwater.A strain-relief connector is suppliedwith each unit. A ½” conduit plug isalso available.

SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
Operating Ambient:
&nbsp&nbsp&nbsp&nbspEPDM O-Ring: -10 to 137°C (14 to 280°F)
Maximum Process Temperature: Coil dependent (see ratings on coils)
Voltage Tolerance: ±10%
Opening Time (msec): 200 to 500 approximately
Closing Time (msec): 100 to 4000 approximately
Cycling Rate: approximately 10 to 50 cpm
Duty Cycle: Continuous (100%)
Coil Molding Material:
&nbsp&nbsp&nbsp&nbspBlack Polyester (Class F): SV8COIL-115AC, SV8COIL-24DC/60HZ, SV8COIL-220AC
&nbsp&nbsp&nbsp&nbspBlack Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC
&nbsp&nbsp&nbsp&nbsp(Class H): SV8COIL-115/60HZ

Process Connection Size	3/4", 1/2", 1"
Flow Coefficient (Cv)	9.8, 4.8, 14.0
Category	Solenoid
Valve Start Position	Normally closed
Body Material	Lead-Free Brass
Valve Type	Pilot Operated
Wetted Materials	SS, Copper, EPDM
Max Operating Pressure	230 psi
Max Process Temperature	137 °C (280 °F)
Media Type	Liquid, Gas
Features	AC/DC Coil Sold Separately
