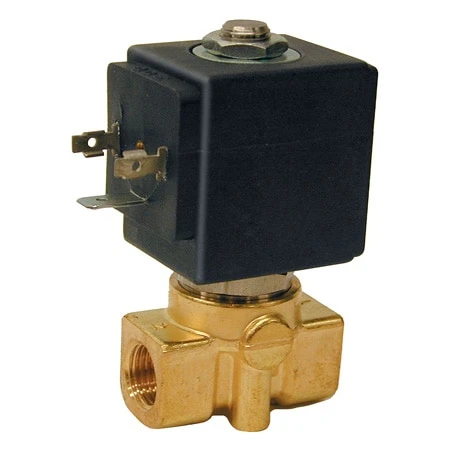

2-Way, NO, NC, Direct Acting, Brass, Solenoid Valves

Original price was: $119.58.Current price is: $83.71.

Ideal for Compressed Air, Inert Gas, Water and Synthetic Oils
Available in Normally Open or Normally Closed
Process Temperature to 137°C (280°F)
120 Vac Standard (DC Coils are Optional)

Valve Start Position

Process Connection Size

Flow Coefficient (Cv)

Max Operating Pressure

Clear

SKU: SV3311 Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SV-3300 Series 2-way solenoid valves are direct-acting valves featuring brass, stainless steel construction and FKM seal material. The temperature range from -10 to 137°C (14 to 280°F) is ideal for neutral media such as compressed air, inert gases, water, and synthetic oils. Electrical connection options are a ½” conduit plug or strain relief connector.

SPECIFICATIONS
Mounting Position: any; preferably with solenoid system upright
Max Process Temperature: 137°C (280°F) due to FKM O-ring
Voltage Tolerance: ±10%
Opening Time (ms):
   AC: 10 to 20
   DC: 20 to 80, depending on orifice and pressure
Closing Time (ms):
   AC and DC: approx 20 to 30
Cycling Rate: approx 1000 cpm
Duty Cycle: continuous (100%)

Valve Start Position	Normally closed, Normally Open
Process Connection Size	1/4", 1/8"
Flow Coefficient (Cv)	0.63, 0.1, 0.14, 0.22, 0.28, 0.45
Max Operating Pressure	AC 45 psi DC 15 psi, AC 435 psi DC 260 psi, AC 315 psi DC 230 psi, AC 200 psi DC130 psi, AC 145 psi DC 85 psi, AC 70 psi DC 30 psi, AC 430 psi DC 260 psi
Category	Solenoid
Body Material	Brass
Valve Type	Direct Acting
Wetted Materials	SS, Copper, Brass, FKM
Max Process Temperature	137 °C (280 °F)
Media Type	Liquid, Gas
Features	AC/DC Coil Sold Separately
