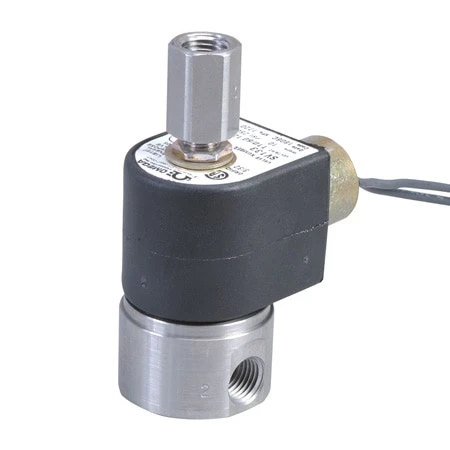

2-Way, NO, Stainless Steel, General Purpose Solenoid Valves

Original price was: $220.12.Current price is: $96.99.

Stainless Steel Valve Body Resists Corrosion
Rugged NEMA 4 (IP65) Housing
Mounts in Any Position
Rated for Continuous Duty

Flow Coefficient (Cv)

Max Operating Pressure

Clear

SKU: SV133 Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

TYPICAL APPLICATIONS:
Automation, Humidifiers, Water Treatment, Dispensing, Laundry, Dry Cleaning Equipment, Machine Tools, Vending Machines

The SV130 Series direct-acting solenoid valves consist of a coil, plunger, and sleeve assembly. In a normally open valve, a plunger return spring holds the plunger away from the orifice, allowing flow through the valve. When current flows through the coil, a magnetic field is produced and it turns the stop into an electromagnet that attracts the magnetic plunger.

This action compresses the return spring and brings the plunger against the orifice to prevent flow through the valve.

SPECIFICATIONS
Wetted Parts: Stainless steel, copper, and seal
Medium: Liquid or gases
Max Static Pressure: 1.5 times max psid, vacuum (>5 microns ABS)
Ambient Temp: -9 to 50°C (15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac coils, 50 to 60 Hz
Weight: 500 g (1.1 lb)

Flow Coefficient (Cv)	0.15, 0.05, 0.11
Max Operating Pressure	250 psi, 400 psi, 325 psi
Category	Solenoid
Valve Start Position	Normally Open
Body Material	SS
Valve Type	Direct Acting
Wetted Materials	SS, Copper, FKM
Process Connection Size	1/4"
Max Process Temperature	116 °C (240 °F)
Media Type	Liquid, Gas
Features	AC/DC Coil Sold Separately
