21CFR Compliant USB Data Loggers For Vaccine & Cold Chain

The OM-EL-21CFR-Series loggers are ideal for applications that require secure storage of data for critical applications such as vaccine monitoring, food and beverage, and cold chain monitoring. These standalone dataloggers are capable of storing between 16,000 to 32,000 temperature or humidity readings depending on the models outlined below.

The OM-EL-21CFR-Series offers models with internal temperature sensors as well as external probe attachments which allow for a wider temperature sensing range.

The OM-EL-21CFR-VAC is specifically designed for vaccine monitoring as it is included with a glycol buffer solution and termistor probe calibrated at 2°C and 8°C which are typical storage requirements for many vaccines.

The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the free Omega 21CFR software. Data can then be graphed, printed and exported to other applications for detailed analysis. The encrypted data has full audit tracking to comply with the requirements of 21CFR Part 11.

The high contrast LCD can show a variety of temperature information. At the touch of a button, the user can cycle between the current, maximum and minimum stored values for temperature.

The data logger is supplied with a lithium metal battery which typically gives 2 years’ logging life.

Omega offers models that are pre-calibrated (-NIST) with calibration points outlined below. If you require custom calibration points, please give us a call and we can help you with a custom calibration solution.

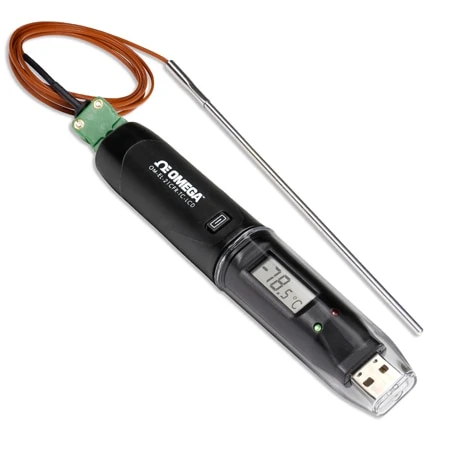

	OM-EL-21CFR-TC-LCD	OM-EL-21CFR-1-LCD	OM-EL-21CFR-2-LCD	OM-EL-21CFR-TC	OM-EL-21CFR-TP-LCD	OM-EL-21CFR-TP-LCD-PLUS	OM-EL-21CFR-VAC
Measurement Type	Temperature	Temperature	Temperature, Humidity	Temperature	Temperature	Temperature	Temperature
Probe	Thermocouple Probe	Internal	Internal	Thermocouple Probe	Thermistor Probe	Thermistor Probe	Thermistor Probe Kit w/ Glycol bottle
Measurement Range	-100 to 200°C (-148 to 392°F) T-type (supplied)²	-35 to +80°C (-31 to +176°F)	-35°C to 80°C (-31°F to 176°F)	0 to 200°C (32 to 392°F) K type (supplied)³	-40 to +125°C (-40 to +257°F)	-40 to +125°C (-40 to +257°F)	-40 to +125°C (-40 to +257°F)
			0 to 100% RH
Readings	32,510	16,379	16,382 temperature, 16,382 RH	32,510	32,510	32,510	32,510
Logging Rate (User Selectable)	10 seconds to 12 hours	10 seconds to 12 hours	10 seconds to 12 hours	1 second to 12 hours	1 second to 12 hours	1 second to 12 hours	1 second to 12 hours
Accuracy	± 2.5°C typical	± 0.5°C typical (see graph in datasheet)	±0.55°C (1.04°F) typical (5 to 60°C)**	± 2.5°C typical	±1°C (-40 to 100°C)**	±0.5°C (-40 to 100°C)**	±0.5C (-40 to 100°C)**
			±2.25 %RH typical (20 to 80%RH)**
LCD Display	Yes	Yes	Yes	No	Yes	Yes	Yes
NIST Calibration Option Available?	Yes*	Yes*	Yes*	Yes*	Yes*	Yes*	Included at +2C and +8C
NIST Option Calibration Points	-80C	5C	25C at 50% RH	5C	5C	5C	N/A
IP67 Seal	No	Yes	Yes	No	No	No	No
Datasheet Link	OM-EL-21CFR-TC-LCD	OM-EL-21CFR-1-LCD	OM-EL-21CFR-2-LCD	OM-EL-21CFR-TC	OM-EL-21CFR-TP-LCD	OM-EL-21CFR-TP-LCD-PLUS	OM-EL-21CFR-VAC

*Must order -NIST Option. For example OM-EL-21CFR-1-LCD-NIST would include a NIST certificate calibrated at 5°C. Contact us if custom calibration points are required.
**The overall error takes into account the sensor accuracy and the resolution of the logger. Please refer to datasheet.
² Also accepts any standard T-type thermocouple with SMP connector
³ Also accepts any K, J, or T-type thermocouple with SMP connector
