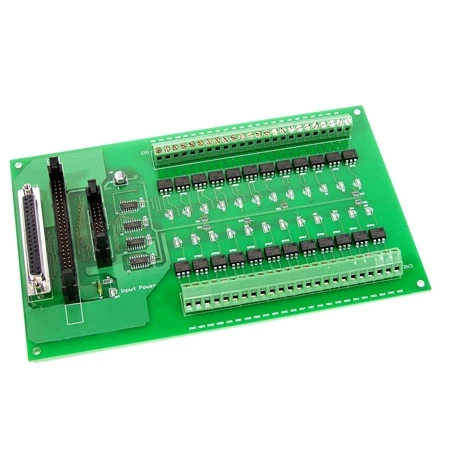

24-Channel Photo-MOS Relay Output Board – Panel Mount

Original price was: $390.00.Current price is: $99.99.

24 Photo MOS Relays
One (Optionally Isolated) 50-Pin Compatible Connector, One 37-Pin D-Sub Connector and One 20-Pin Connector
Connects to OME Series of Data Acquisition Boards with Digtial Outputs
LED Indicates Relay Status

SKU: OME-DB-24POR Categories: Control & Monitoring, Option Boards Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OME-DB-24POR includes 24 normally open, Form A, Photo MOS Relays. The board interfaces to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The user can use the OME-DB-24POR to switch loads, up to 350 Vac and up to 0.13 A. The relay is energized by applying a 5 V signal to the appropriate relay channel on the 50-pin compatible connector, 37-pin D-Sub connector or 20-pin flat-pin connector. Twenty-four enunciator LED’s, one for each relay, light when their associated relay is activated.

Specifications
Turn-On Time: 0.7 ms (typical)
Turn-Off Time: 0.05 ms (typical)
Output On Resistance: 23 Ω (typical)
Load Voltage: 350 V (peak AC)
Power Dissipation: 500 mW
Input / Output Isolation: 5000 Vac
Continuous Load Current: 0.13 A (peak AC)
Power Consumption: +5 V @0.3 A max
Dimensions: 130 H x 220 mm W (5.1 x 8.7″)
Operating Temperature:
0 to 60°C (32 to 140°F)
Storage Temperature:
-20 to 70°C (-4 to 158°F)
Humidity: 5 to 90% RH non-condensing

Form Factor	Panel Mount, DIN-Rail Mounting Kit
Number of Channels	24
Output Type	Form A Isolated Photo MOS
Max Current/Relay	0.13 A
Max Switching Voltage	350 Vac
Supply Voltage	5 Vdc
Features	1.5 m 50-Pin Flat Cable
