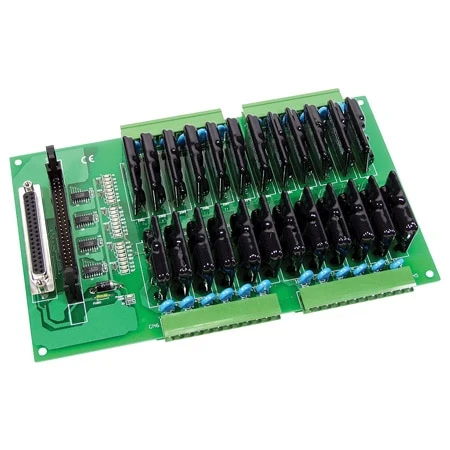

24 Channel Solid State Relay Output Board For OME-PIOD144

Original price was: $336.00.Current price is: $95.99.

24 SSR (AC)
One OPTO-22 Compatible Connector, One 37-Pin D-Sub Connector and One 20-Pin Connector
Connects Directly to OME-PIO-D144
LED ’s Indicate Relay Status

Form Factor

Features

Clear

SKU: OME-DB-24SSR Categories: Control & Monitoring, Option Boards Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OME-DB-24SSR includes 24 normally open, or Form A, solid-state relays. The board interfaces to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The user can use the OME-DB-24SSR to switch high voltage loads up to 240 Vac and up to 4 A. The relay is energized by applying a 5 V signal to the appropriate relay channel on the 50-pin OPTO-22 compatible connector or 37-pin D-Sub connector. Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated. Because there is a D-Sub 37-pin connector on the board, the user may use it to interface to any TTL output board.

Specifications
SOLID STATE RELAY (SSR)
Load Voltage: 50 to 250 Vac
Repetitive Peak Off Voltage: 600 V
Surge Current: 50 A
Maximum Load Current: 4 A
Maximum “Off-State” Leakage
Current: 5 mA
Operating Time Maximum: 1/2
cycle of voltage sine wave: 1 ms
Power Consumption: +5 [email protected] A max
Dimensions: 130 H x 220 mm W (5.1 x 8.7″)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Humidity: 5 to 90% RH non-condensing

Form Factor	Panel Mount, DIN-Rail Mounting Kit
Features	1.5 m 50-Pin Flat Cable, 1 m 37-pin D-sub Cable
Number of Channels	24
Output Type	SSR
Max Current/Relay	4 A
Max Switching Voltage	250 Vac
Supply Voltage	5 Vdc
