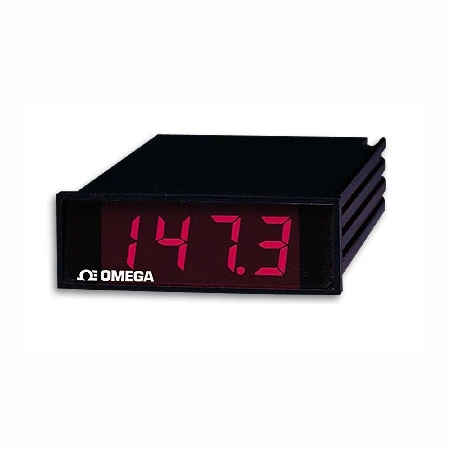

3 1/2 Digit Mini-size Process Meter

ed;”> DPF50 Series are discontinued. As a possible substitute, please check out the DP20 Meter for details.

Large Display, Small Case
The DPF50 Series provides a full-size 14.2 mm (0.56″), red or green LED display, yet is housed in a miniature case with a 24 x 72 mm (0.94 x 2.83″) bezel. The case fits into a standard 3 //64 DIN cutout, 22.2 x 68 mm (0.87 x 2.68″) and requires a depth of less than 120 mm (4.72″) behind the panel, including plug-in screw-clamp connectors (standard).
Built-In Isolated Excitation
Model DPF52 is a low-cost 3 1 /2 digit (±1,999-count) process meter with a built-in, isolated excitation supply to power two- or four-wire transmitters, bridges or active transducers. Output levels of 24 Vdc at 20 mA or 10 Vdc at 30 mA are jumper-selectable.
Easy To Scale
The DPF50 Series can be shipped fully calibrated to meet a customer’s specific requirements (DPF50-FSE). Five signal ranges can be selected via push-on jumpers, and precision potentiometers are readily accessible behind the lens to provide zero and span adjustments of 2000 counts each. Accuracy is 99.9% of reading.
Multiple Power Options
The DPF50 Series incorporates a power supply, which is available for 24, 100, 115 or 230 Vac OR 7-32 Vdc power. All power options provide EMI filtering, so that power line noise does not affect the reading.
