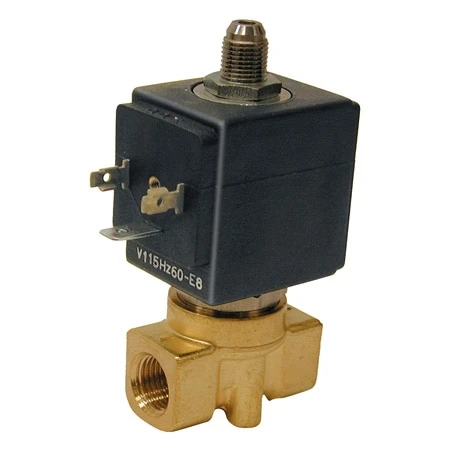

3-Way, NO, NC, Direct Acting, Brass, Solenoid Valves

Original price was: $176.30.Current price is: $96.99.

Ideal for Compressed Air, Inert gas, Water and Synthetic Oils
120 Vac Standard (220 Vac and DC Coils are Optional)
All Coils are CE
Normally Open or Normally Closed Models

Valve Start Position

Process Connection Size

Flow Coefficient (Cv)

Max Operating Pressure

Clear

SKU: SV4108 Categories: Flow Instruments, Solenoid Valves, Valves Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The SV4100 and SV4300 Series are direct acting solenoid valves. The valves have a brass body with brass and stainless steel wetted parts and a FKM seal material. A temperature range of -10 to 137°C (14 to 280°F) makes this valve ideal for neutral media such as compressed air, inert gas, water and synthetic oils. A strain-relief connector is supplied with each unit. A ½” conduit plug is also available.

SPECIFICATIONS
Mounting Position: Any (preferably with the solenoid system upright)
Max Process Temp: 137°C (280°F) due to FKM O-ring
Max Ambient Temp: Coil Dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time:
   AC: approx. 8 to 15 msec
   DC: approx. 10 to 20 msec
Closing Time:
   AC: approx. 8 to 15 msec
   DC: approx. 10 to 20 msec
Cycling Rate: Approx. 1000 cpm
Duty Cycle: Continuous (100%)

Materials of Construction
Body: Brass
Armature Tube: Stainless Steel 300
Fixed Core: Stainless Steel 400
Plunger: Stainless Steel 400
Spring: Stainless Steel 300
Shading Ring: Copper
Orifice: Stainless Steel 300

Coil Molding Material:
Black Polyester (Class F): SV8COIL-115AC, SV8COIL-24AC/60HZ, SV8COIL-220AC
Black Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC
Black Polyphenylensulphide (Class H): SV8COIL-115/60HZ

Valve Start Position	Normally Open, Normally closed
Process Connection Size	1/4", 1/8"
Flow Coefficient (Cv)	0.28, 0.06, 0.1, 0.22, 0.14
Max Operating Pressure	50 psi, 260 psi, 145 psi, 60 psi, 290 psi, 215 psi, 85 psi, 70 psi
Category	Solenoid
Body Material	Brass
Valve Type	Direct Acting
Wetted Materials	SS, Copper, FKM
Max Process Temperature	137 °C (280 °F)
Media Type	Liquid, Gas
Features	AC/DC Coil Sold Separately
