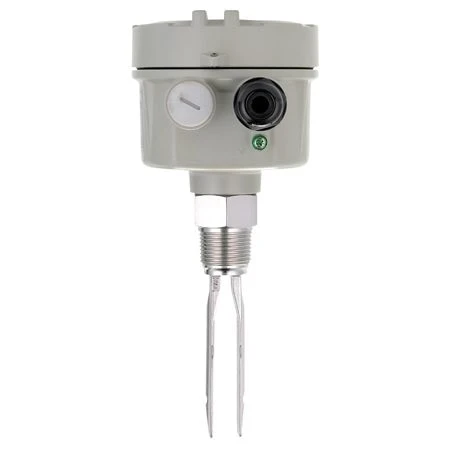

316 SS Fixed Length Standard-Type Tuning Fork Level Switch

Original price was: $353.00.Current price is: $99.99.

Input voltage range of 20 to 250 (Vac / Vdc).
No calibration or complex setting procedure
High / Low fail safe modes
Remote Self-Testing function to diagnostic connections

SKU: LTUR-3022 Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

The tuning fork level switch is a mechanical resonant device which is excited by piezoelectric (PZT) elements. When the measured medium comes into contact with the tuning fork, it will change the feedback resonant frequency due to the damping resonances between the exciting PZT and receiving PZT.

By detecting the frequency and appropriately tuning the sensitivity of tuning fork level switch on measured material, such device can easily operate for monitoring the alarm level of measured material.

Specifications:

Housing Material: Aluminum
IP Protection: IP65
Fork Material: SUS316
Fork Length: 105mm
Mounting: 1” NPT
Electrical Connection: 1/2″NPTx2
Max. vertical load on rod: 177in.Lbs(20Nm)
Process pressure: -1~600PSI (40BAR)
Supply Voltage and Output: 20~250Vac/Vdc,50/60Hz, Relay SPDT 5A/250Vac / 28Vdc
Power consumption: 10VA
Ambient temperature: -40C~60C
Process temperature: -40C~130C
Signal output: Relay, SPDT, 5A/250Vac/ 28Vdc
Minimum material density sensed: Solid: >/= 0.07g/cm3, Liquid: ³0.7g/cm3
Time delay: 0.6 Second / Operate; 1~3 Seconds / Reset
Vibrating frequency: 350~370Hz
Selectable Fail-safe: Hi / Lo.
Selectable sensitivity: Hi / Lo.

Media Type	Liquid
Max Operating Pressure	600 psi
Max Process Temperature	130 °C (266 °F)
Wetted Materials	316 SS
Process Connection Type	NPT Male
Process Connection Size	1"
Supply Power	20 to 250 Vac/Vdc
Switch Rating and Type	5 A SPDT
Probe Length	4"
Features	Enclosure Aluminum
