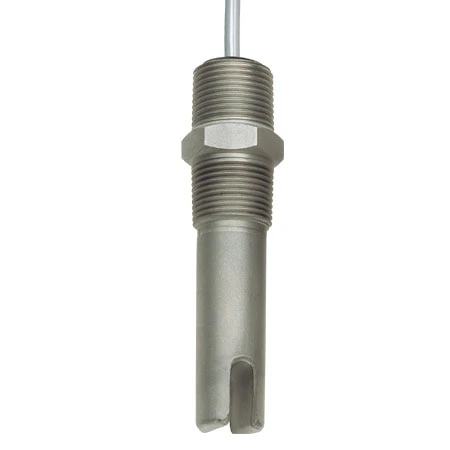

316 SS Single Point Ultrasonic Liquid Level Switch

Original price was: $267.29.Current price is: $98.99.

300:1 Wet-to-Dry Ratio with 316 SS Sensor
E poxy-Sealed Integral Electronics with Sensor
Low-Cost Replacement to Mechanical Float
Mounts in Any Direction

SKU: LVSW-701 Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LVSW-701 Series solid state liquid level switch is a direct replacement for mechanical float-type liquid level devices. The switch employs proven ultrasonic technology and solid state integral electronics, and provides reliable operation in virtually any liquid, regardless of viscosity. This eliminates problems of stickiness and failure rate due to finite mechanical life inherent in the mechanical float design. The combination of fully epoxy-sealed electronics and ultrasonic sensing technology will provide years of maintenance free service.

Specifications
Repeatability: 2 mm (0.08″) or better
Delay: 0.5 sec
Input Power: 6 to 24 Vdc
Leakage Current: Less than 50 uA
Outputs:
Relay Output: 1 A SPDT relay
Protection: Transient, reverse polarity
Sensor: 316 LSS
Temperature: -29 to 71°C (-20 to 160°F)
Pressure:
316 SS Models: Up to 1000 psig (6895 kPa)
Mounting: ¾ NPT standard

Media Type	Liquid
Max Operating Pressure	1,000 psi
Max Process Temperature	71 °C (160 °F)
Wetted Materials	316 SS
Process Connection Type	NPT Male
Process Connection Size	3/4"
Switch Rating and Type	1 A SPDT
Features	Input Power Required 6 to 24 Vdc
