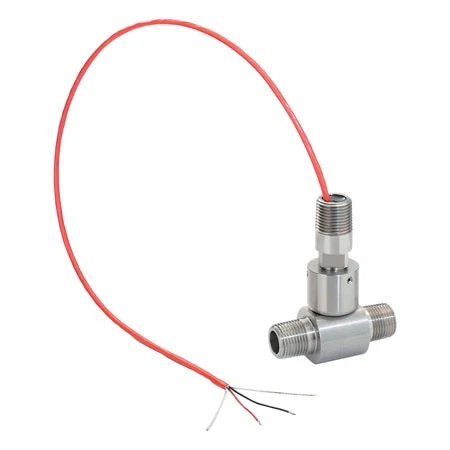

316 SS Turbine Flow Meters W/Pulse Or Current Output

Original price was: $350.00.Current price is: $99.99.

±1% of Actual Flow Accuracy
Includes 3-point NIST certificate
Pressure Rating Up to 345 bar (5000 psi)
Stainless Steel Construction

Flow Range

Output Signal

Process Connection Size

Clear

SKU: FTB-1304 Categories: Flow Instruments, Flow Meters, Turbine Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FTB-1300 Series of turbine flow meters are designed for industrial and laboratory measurement of water, solvents and other low viscosity fluids. The FTB-1300 Series turbine flow meters feature a 316 stainless steel body and a tungsten carbide bearing. They offer good accuracy and reliability with very little pressure drop. The standard turbine flow meters feature threaded end connections.

The FTB-1300 series of turbine flow meters is designed with a wear resistant rotor assembly to provide trouble free operation and a long service life. Fluid moving through the flow meter causes the rotor to turn at a speed proportional to the flow rate, and as the rotor blades cut through the magnetic field of the pickup, an electronic pulse is generated. The pulse train is used to represent the actual flow or total amount of fluid passing through the flow meter. The number of electronic pulses generated per unit volume is known as a K-factor. The value is constant over each flow meter’s operating range, and is unique to each meter.

SPECIFICATIONS
Pressure Max: 345 bar (5000 psi)
Wetted Materials: Stainless Steel (316L, 303 and 1.4122) and carbide with nickel binder (be sure that the operating fluid is compatible with these materials)
Outputs
Square Wave (FTB-1300 Models):
    Supply Voltage: 10 to 28 Vdc
    Supply Current: 8 mA @ 12 Vdc, 12 mA @ 24 Vdc
    Duty Signal: 50% ±15%
    Minimum Signal: 0.5 Hz
    Frequency Output: Flow dependent, up to 2000 Hz
    Driving Capacity: 50 mA Max resistive load
    Output Impedance: ~40?, analog switch and self-resetting fuse
    Temperature Range: -40 to 85°C (-40 to 185°F)
Current (FTB-1310 Models):
    Supply Voltage: 10 to 30 Vdc
    Input: 0.25 Hz to 5 kHz
    Update Time: 1/F + 25 msec
    Amplitude: 1V p-p to 40V p-p
    Linearity: ±0.01% of reading
    Output: 4 to 20 mA
    Enclosure Certifications: NEC Class I Groups C, D; Class II Groups E, F, G
    Temperature Range: -40 to 85°C (-40 to 185°F)

Model No.	Fittings	Range LPM	Range GPM	Output/Description
FTB-1301	½ NPT	0.3 to 1.5	0.08 to 0.4	Amplified square wave 60 cm (24″) cable
FTB-1302	½ NPT	1.1 to 11	0.3 to 3
FTB-1303	½ NPT	3.4 to 34	0.9 to 9
FTB-1304	½ NPT	6 to 60	1.6 to 16
FTB-1305	1 NPT	6 to 60	1.6 to 16
FTB-1306	1 NPT	11 to 121	3 to 32
FTB-1307	1½ NPT	19 to 200	5 to 53
FTB-1308	2 NPT	49 to 757	13 to 200
FTB-1311	½ NPT	0.3 to 1.5	0.08 to 0.4	4 to 20 mA, industrial head electronics enclosure
FTB-1312	½ NPT	1.1 to 11	0.3 to 3
FTB-1313	½ NPT	3.4 to 34	0.9 to 9
FTB-1314	½ NPT	6 to 60	1.6 to 16
FTB-1315	1 NPT	6 to 60	1.6 to 16
FTB-1316	1 NPT	11 to 121	3 to 32
FTB-1317	1½ NPT	19 to 200	5 to 53
FTB-1318	2 NPT	49 to 757	13 to 200

Flow Range	1.6 to 16 GPM, 0.08 to 0.4 GPM, 0.3 to 3 GPM, 0.9 to 9 GPM, 3 to 32 GPM, 5 to 53 GPM, 13 to 200 GPM
Output Signal	Amplified Square Wave, 4 to 20 mA
Process Connection Size	1/2", 1", 1-1/2", 2"
Category	Meter
Media Type	Liquid
Accuracy	±1%
Max Operating Pressure	5,000 psi
Max Process Temperature	85 °C (185 °F)
Wetted Materials	300 Series SS, Carbide, Nickel
Process Connection Type	NPT Male
Display	No Display
