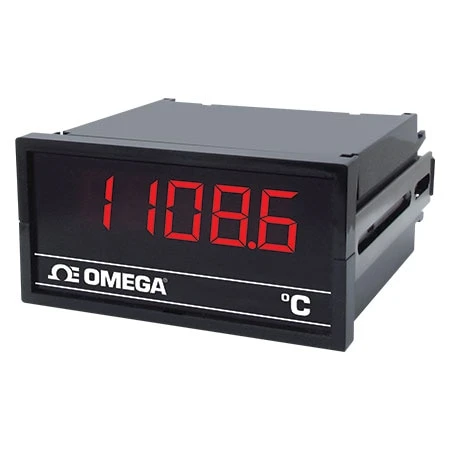

4-1/2 Digit Thermocouple Meters, 1/8 DIN
Original price was: $324.00.$97.99Current price is: $97.99.
- J, K or T Thermocouple Input
- 0.05 deg/deg Cold-Junction Error
- -138 to 1248°C Range
- Five-Segment Linearization
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
This product is no longer available. Please see DPPT-Series as a possible alternative or contact our Engineering department for a viable replacement.
STANDARD FEATURES
Mechanical features include a bright 14 mm (0.56″) display, a screw-terminal barrier strip for signal and power, and a compact 1/8 DIN case that requires less than 104 mm (4.1″) behind the panel. Electrical features include cold-junction compensation, jumper selection of °C or °F, and a linearized recorder output of 1 mV per degree.
OPTIONS
Power options include isolated 9 to 32 Vdc and 26 to 56 Vdc. A splash-proof lens cover which meets NEMA 4 (IP65) requirements allows the DP3002 to be used in harsh industrial environments.
| Display Color | Red |
|---|---|
| Display Digit Height | 14 mm (0.56 in) |
| Display Type | LED |
| Form Factor | 1/8 DIN |
| Input Range | -105 to 1248°C |
| Number of Display Digits | 4 1/2 Digits |
| Number of Inputs | 1 |
| Resolution | 0.1°C or 0.1°F |
| Specifications Input Type | Thermocouple |
| Supply Voltage | 115 or 230 Vac |
| ThermocoupleType | K |
