4 Channel 7 Thermocouple Types Datalogger USB Output

Original price was: $341.00.Current price is: $99.99.

Seven thermocouple types: K,J,T,E,R,S,N
Datalogging capacity 16,800 records
Higher accuracy
Relative (REL) and differential measurement

SKU: HH1385 Categories: Data Loggers, Temperature and Humidity Data Loggers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

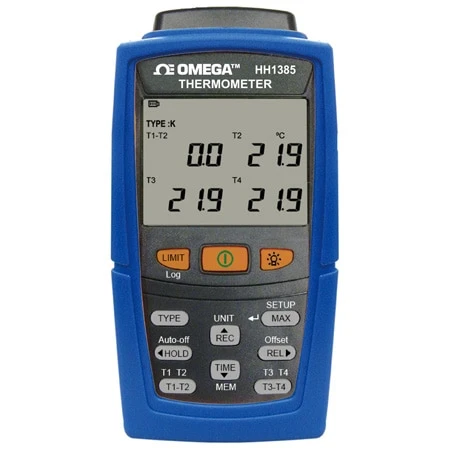

The HH1385 is a digital 4 input thermometer and data logger that works with any K, J, E, T, R, S, N type thermocouple temperature sensors (Please refer to the specifications table below). This unit offers higher accuracy and better uniformity across various thermocouple types. This device measures/stores over 16,800 temperature readings and allows up to 4 thermocouple connections that plug into a miniature female thermocouple receptacle at the base of the unit. The user can easily set up the initial data logging parameters including thermocouple type, logging Intervals, high/low alarm settings, and desired temperature units (°C,°F or °K). The user may also download the stored data by plugging the meter straight into a PC’s USB port and running the easy-to-use Windows software.

Specification Table

Range	K	-200°C to +1372°C (-328°F to +2501°F)
	J	-210°C to +1200°C (-346°F to +2192°F)
	T	-250°C to +400°C (-418°F to +752°F)
	E	-210°C to +1000°C (-346°F to +1832°F)
	R/S	-0°C to +1767°C (-32°F to +3212°F)
	N	-150°C to +1300°C (-238°F to +2372°F)
Resolution	0.1	K / J / T / E / N / R / S ≤ 1000°C
Resolution	1	R / S and K / J / E / N ≥ 1000°C
Accuracy	K/J/E/T/N type: ±(0.05% rdg + 0.7°C/1°F) Below -100°C(-148°F) K,J,T,E: +0.15% reading N: +0.45% reading
Accuracy	R/S Type: ±(0.05% rdg + 3°C/5.4°F)
Temperature coefficient	0.05% of reading ±.07°C per °C outside the specified 18 to 28°C
Temperature scale	ITS-90
Operation Temperature and Humidity	0°C to 50°C (32°F to +122°F), <80%RH
Storage Temperature and Humidity	0°C to 50°C, relative humidity under 80%

Accuracy is specified for ambient temperatures between 18 to 28°C (64 to 82°F)

Measurement Type	Temperature
Input Type	K, J, T, E, R, S, N
Maximum Samples	~16k
Display	4 digit LCD
Power	9 V
Data Interface	USB
Additional Feature	Max /Min /AVG /Time and data functions, Audible alarm functions
