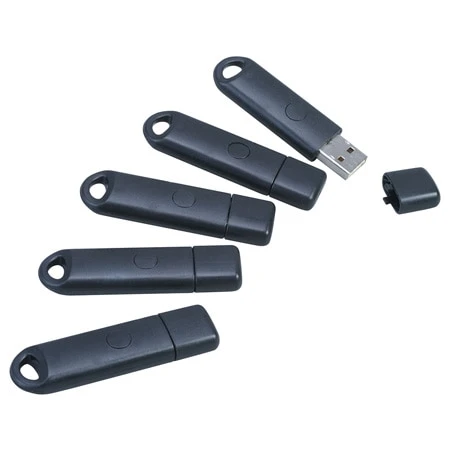

5 Pack Temperature Data Logger With USB Interface

The OM-EL-USB-LITE is a low-cost temperature data logger that measures and stores up to 4080 temperature readings over a -10 to 50°C (14 to 122°F) measurement range. It has a fixed 30-minute sample rate and a battery life of 1 month with continuous use. Press the button and a red/green LED indicates whether a preset alarm level has been breached. The data logger is configured and the stored data is downloaded by plugging the module into a PC’s USB port and running the control software under Windows XP SP3/Vista/7 and 8. The downloaded data can be graphed, printed, and exported to other applications. A battery comes installed. To start logging, pull out the tab.

Battery Replacement
The user should replace the battery every month, or before logging critical data. The OM-EL-USB-LITE does not lose its stored readings when the battery is discharged or replaced; however, the data logging process will stop and cannot restart until the battery has been replaced and the logged data has been downloaded to a PC.

For maximum logging life, use only OM-EL-BATT-LITE replacement batteries. Before replacing the battery, remove the OM-EL-USB-LITE from the PC.

Note: Leaving the OM-EL-USBLITE plugged into the USB port for longer than required will shorten battery life.

LED Flashing Modes
The OM-EL-USB-LITE has a bicolor LED status light. To save power, it operates for only a short time after the pushbutton is released.

Specifications
Measurement Range: -10 to 50°C (14 to 122°F)
Internal Resolution: 1°C (2°F)
Accuracy: ±2.5°C (±4.5°F)
Memory: 4080 readings
Logging Interval: 30 minute (fixed)
Operating Temperature Range: -10 to 50°C (14 to 122°F)
Alarm Thresholds: 2 (user programmable)
Start Date/Time: Selectable in software
Status Indicators (LEDs): Red/green alarm status indication via pushbutton
Software: Windows XP SP3/Vista/7 and 8 (32- and 64-bit)
Power: 3 V coin cell battery (included)
Battery Life: 1 month
Weight: 30 g (1 oz)
Dimensions:
68 x 18 x 9.4 mm (2.7 x 0.7 x 0.4′ )
