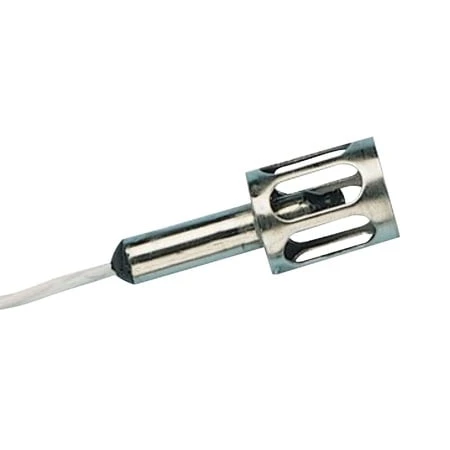

-50°C To 230°C RTD Air Temperature Sensors With Cages

Original price was: $153.48.Current price is: $97.99.

For Monitoring of Air and Gas Streams Mounts in Any Orientation
Exposed Sensing Element Has Fast Response Times in Air
Available with Stainless Steel or Plastic Housings
High-Accuracy, 100 Ohm, Class “A” DIN Platinum Element

Process Temperature Range

Sheath Material

Termination Connection Type

Clear

SKU: RTD-806 Categories: Air Sensor Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

Omega’s Air Temperature RTD sensors. The platinum thin film RTD sensing element is exposed to air flow while being protected from passing debris by a vented housing (available in both plastic and steel). This construction uses a #26 AWG stranded nickel-plated copper, PFA insulated lead wire. This design comes standard with a removable miniature three pin connector.

Process Temperature Range	-29 to 180°C (-20 to 356°F), -50 to 230°C (-58 to 446°F)
Sheath Material	Glass-filled Nylon, 304 Stainless Steel
Termination Connection Type	3-Prong Miniature Connector, 3-Prong Standard Connector
Category	RTD
Sensor Application	Air Probe
Accuracy	Class A per IEC60751
Nominal Resistance	100 Ω
Number of Wires	3
Probe Diameter	0.500 in
Probe Length	1.25 in
Cable Insulation	PFA
Wire Gauge	26 AWG
Cable Length	40 in
