65 And 150 Mm Variable Area Flow Meters
Original price was: $217.32.$95.99Current price is: $95.99.
- ±2% Full Scale Accuracy
- Non-Rotating Seal Spindle
- Easy-to-Read Scale Design
- Special Lock Nut Design for Easy Tube Replacement
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

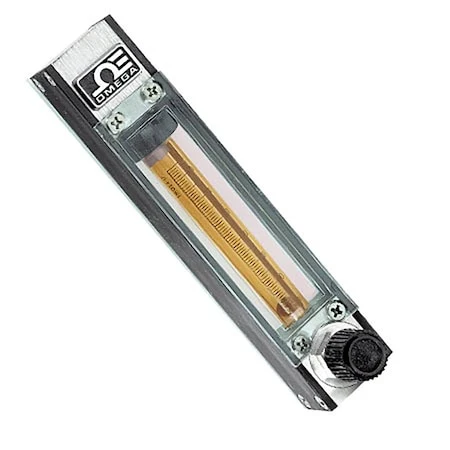

The OMEGA™ precision variable-area Variable Area Flow Meters for air, water, and gases have up to ±2% of full scale accuracy and 0.25% of full scale repeatability (models ending in ’07’ or ’45’ have ±5% FS accuracy). These units feature an easy-to-read millimeter scale and are supplied with correlation charts for air and water. For correlation data for nitrogen, oxygen, hydrogen, helium, argon and carbon dioxide, please refer to the FLT Series flow tubes. Please consult the Engineering Department for details. The scale is fused on the metering tube in 1 mm (3⁄32′) increments, which enables a user to read the flow rate with the highest accuracy.
The special scale design, where a vertical line runs through the length of the scale and intersects the horizontal scale divisions, reduces parallax and eye fatigue, thus insuring high-accuracy readings. The front polycarbonate shield is also curved to act as a magnifying glass, all of which yields superior performance over other Variable Area Flow Meters with standard design.
Easy Flow Tube Replacement
The important advantage of the FL-3600 through the FL-3900 Variable Area Flow Meters is their special locknut design, which facilitates the installation and replacement of flow tubes in the field for easy flow range change. The knurled locking nut on top of the tube is backed off with a small Allen wrench or a 1 mm (3⁄32′) diameter rod, thereby releasing the tube for replacement. The system is designed so that the tube does not rotate while it is tightened into place. Only 2 different standard valves are used: one for flows up to 7000 cc/min of air, the other for higher flow rates. Six different high-resolution valves are used; consult Engineering for details when changing tubes.
Shielded for Pressurized Systems
These Variable Area Flow Meters, with precision-bored borosilicate glass metering tubes, are fully shielded against breakage. A white opaque rear shield provides a background to aid in discerning the float position for accurate readings.
Panel Mounting Design
These Variable Area Flow Meters are equipped with horizontal ports and NPT threads for easy panel mounting. The ports have external threads and are equipped with panel retaining nuts. No additional mounting hardware is required. Simply drill two holes 131 mm (5.156′) apart (center to center) for 65 mm units, 240 mm (9.469′) apart (center to center) for 150 mm units. Each hole should be 16 mm (5⁄8′) in dia.
SPECIFICATIONS
Scales: 65 or 150 mm arbitrary scale
Accuracy: ±2% full scale (±5% FS on FL3607/3707 and FL3845/3945 models)
Repeatability: ±0.25% full scale
Connections: 1/8 FNPT, horizontal
Flow Tube: Borosilicate glass
End Fittings: Anodized aluminum or 316 SS
Side Panels: Aluminum
Valve Orifice: Polyacetal for aluminum models, Kel-F in 316 SS models
O-Rings and Packings: Buna in aluminum models, FKM in 316 SS models
Packings: FKM
Float Stops: PTFE
Max Temperature: 121°C (250°F)
Max Pressure: 200 psig (13.8 bar)
| Gas Flow Range | 122.2 to 1,222 SCCM, 3.299 to 32.99 SCCM, 0.577 to 5.77 SCCM, 1.677 to 16.77 SCCM, 81.8 to 818 SCCM, 20.2 to 202 SCCM, 52.2 to 522 SCCM, 10.4 to 104 SCCM, 29.8 to 298 SCCM, 2468 to 24,680 SCCM, 4.87 to 48.7 SCCM, 14.5 to 145 SCCM, 105.6 to 1,056 SCCM, 5850 to 58,500 SCCM, 4209.4 to 42,094 SCCM, 267.8 to 2,678 SCCM, 492.2 to 4,922 SCCM, 573.9 to 5,739 SCCM, 204 to 2,040 SCCM, 398 to 3,980 SCCM, 368 to 3,680 SCCM, 124.9 to 1,249 SCCM, 252 to 2,520 SCCM, 1205.8 to 12,058 SCCM, 194.6 to 1,946 SCCM, 37.4 to 374 SCCM, 81.4 to 814 SCCM, 82.5 to 825 SCCM, 168.2 to 1,682 SCCM, 231.3 to 2,313 SCCM, 456.2 to 4,562 SCCM, 380.7 to 3,807 SCCM, 759 to 7,590 SCCM, 867.8 to 8,678 SCCM, 1673.7 to 16,737 SCCM, 5949.4 to 59,494 SCCM, 2253.6 to 22,536 SCCM, 4151.2 to 41,512 SCCM, 4.85 to 48.5 SCCM, 14.15 to 141.5 SCCM, 45.4 to 454 SCCM, 9.2 to 92 SCCM, 14 to 140 SCCM, 26.3 to 263 SCCM |
|---|---|
| Liquid Flow Range | 3.37 to 33.7 SCCM, 0.062 to 0.62 SCCM, 0.007 to 0.07 SCCM, 0.028 to 0.28 SCCM, 2.008 to 20.08 SCCM, 0.264 to 2.64 SCCM, 1.2 to 12 SCCM, 0.175 to 1.75 SCCM, 0.578 to 5.78 SCCM, 74.5 to 745 SCCM, 0.059 to 0.59 SCCM, 0.238 to 2.38 SCCM, 2.08 to 20.8 SCCM, 186.6 to 1,866 SCCM, 126.1 to 1,261 SCCM, 5.2 to 52 SCCM, 15 to 150 SCCM, 16.98 to 169.8 SCCM, 3.97 to 39.7 SCCM, 10.83 to 108.3 SCCM, 10.35 to 103.5 SCCM, 2.697 to 26.97 SCCM, 7.067 to 70.67 SCCM, 36.4 to 364 SCCM, 5.56 to 55.6 SCCM, 0.35 to 3.5 SCCM, 0.55 to 5.5 SCCM, 2.04 to 20.4 SCCM, 1.65 to 16.5 SCCM, 4.6 to 46 SCCM, 5.35 to 53.5 SCCM, 13.04 to 130.4 SCCM, 8.43 to 84.3 SCCM, 21.66 to 216.6 SCCM, 21 to 210 SCCM, 50.6 to 506 SCCM, 188.1 to 1,881 SCCM, 9 to 579 SCCM, 128.8 to 1,288 SCCM, 0.053 to 0.53 SCCM, 0.245 to 2.45 SCCM, 0.85 to 8.5 SCCM, 0.085 to 0.85 SCCM, 0.192 to 1.92 SCCM, 0.47 to 4.7 SCCM, 5.4 to 54 SCCM |
| Accuracy | ±2%, ±5% |
| Wetted Materials | Aluminum, Glass, Polyacetal, Carboloy, Aluminum, Glass, Polyacetal, Aluminum, Glass, Polyacetal, 316 SS, 316 SS, FKM, Glass, PCTFE, Carboloy, 316 SS, FKM, Glass, PCTFE, Aluminum, Glass, Polyacetal, Sapphire, 316 SS, FKM, Glass, PCTFE, Sapphire |
| Scale | 0 to 150, 0 to 65 |
| Valve Included | Yes, No |
| Features | 8 Turn Resolution Valve, 16 Turn High Resolution Valve, Not Applicable |
| Category | Meter |
| Media Type | Air, Water |
| Process Connection Type | NPT Female |
| Process Connection Size | 1/8" |
| Max Operating Pressure | 200 psi |
| Max Process Temperature | 121 °C (250 °F) |
