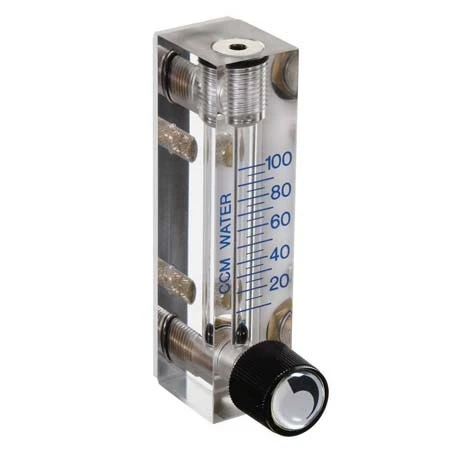

Acrylic Variable Area Flow Meters For Air Or Water

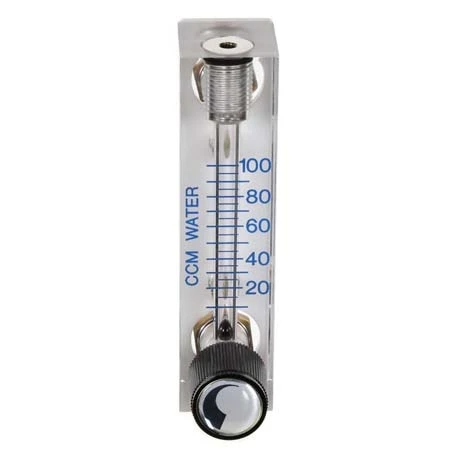

Acrylic Variable Area Flow Meters For Air Or Water - Image 2

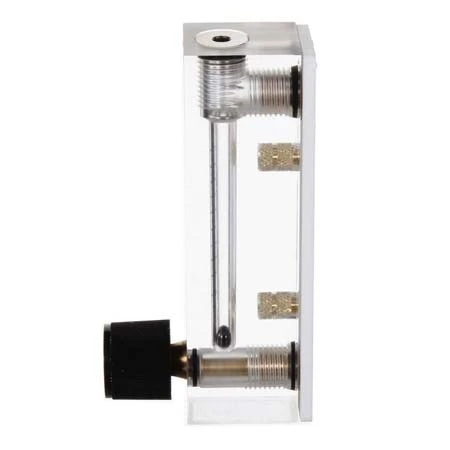

Acrylic Variable Area Flow Meters For Air Or Water - Image 3

Acrylic Variable Area Flow Meters For Air Or Water

Original price was: $91.28.Current price is: $63.90.

FEATURES:
Easy-to-Read English or Metric Scales
Water Ranges from 4 CCM to 20 GPM, Air Ranges from 40 CCM to 4000 LPM
Threaded Brass Inserts for Quick Installation

Media Type

Gas Flow Range

Liquid Flow Range

Accuracy

Process Connection Size

Wetted Materials

Valve Included

Features

Clear

SKU: FL-2010 Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

NOT ALL MODELS ARE STANDARD WITH VALVES, VERIFY MODEL DESCRIPTION TO CONFIRM

The FL-2000 Series offers a wide variety of precision flow meters for use in medical, industrial, chemical, and laboratory applications at an economical price. Units are available with or without valves.

SPECIFICATIONS
Accuracy:
    Models FL-2001–FL-2025: ±5% F.S.
    Models FL-2031–FL-2069: ±3% F.S.
    Models FL-2071–FL-2128: ±2% F.S.
Float: Black glass stainless steel
Body: Clear acrylic
Seals: Buna O-Rings with brass or PVC fittings FKM O-Rings with stainless steel fittings
Pressure: 100 psig max @ 21°C (70°F)
Temperature: 65°C (150°F) max @ 0 psig
Fittings: Brass std; stainless steel optional except for FL-2071 through FL-2128, which have 1 NPT PVC fittings only
Valves:
    Models FL-2001 through FL-2069: brass standard; stainless steel cartridge type (optional)
              FL-2071 through FL-2128: optional plastic in-line gate

Media Type	Air, Water
Gas Flow Range	0.04 to 0.5 LPM, 0.1 to 1 SCFH, 0.2 to 2 SCFH, 0.4 to 5 SCFH, 1 to 10 SCFH, 0.5 to 10 SCFH, 4 to 50 SCFH, 10 to 100 SCFH, 20 to 200 SCFH, 0.1 to 1 LPM, 0.2 to 2.5 LPM, 0.4 to 5 LPM, 1 to 10 LPM, 2 to 25 LPM, 6 to 50 LPM, 4 to 50 LPM, 10 to 100 LPM, 10 to 100 SCCM, Not Applicable, 0.4 to 0.5 SCFH, 4 to 40 SCFH, 100 to 1,000 CCM, 2 to 20 LPM, 3 to 30 LPM, 0.3 to 3 SCFM, 0.5 to 5 SCFM, 1 to 10 SCFM, 4 to 20 SCFM, 14 to 140 LPM, 30 to 300 LPM, 100 to 560 LPM, 3 to 25 SCFM, 4 to 50 SCFM, 10 to 100 SCFM, 100 to 700 LPM, 100 to 1,400 LPM, 400 to 3,400 LPM, 400 to 4,000 LPM
Liquid Flow Range	Not Applicable, 20 to 240 SCCM, 0.2 to 2 GPH, 0.4 to 5 GPH, 0.4 to 5 GPM, 1 to 10 GPH, 2 to 20 GPH, 4 to 40 GPH, 4 to 50 SCCM, 25 to 225 SCCM, 40 to 400 SCCM, 40 to 660 SCCM, 100 to 1,500 SCCM, 200 to 3,000 SCCM, 300 to 3,700 SCCM, 2 to 25 GPH, 6 to 60 GPH, 0.25 to 2.5 GPM, 1 to 10 LPM, 2 to 20 LPM, 0.6 to 5 GPM, 1 to 10 GPM, 2 to 20 GPM, 2 to 19 LPM, 4 to 36 LPM, 5 to 75 LPM, 1 to 19 LPM
Accuracy	±5%, ±3%, ±2%
Process Connection Size	1/8", 1/4", 1"
Wetted Materials	Acrylic, Buna, Brass, SS, Acrylic, FKM, Acrylic, Buna, PVC
Valve Included	Yes, No
Features	Panel Mount, In-Line
Category	Meter
Process Connection Type	NPT Female
Max Operating Pressure	100 psi
Max Process Temperature	65 °C (150 °F)
Scale	Direct Read
