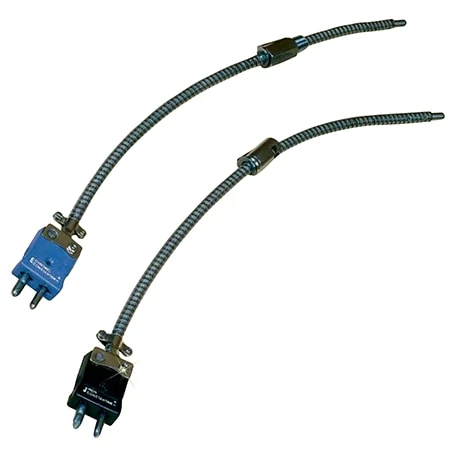

Adjustable Depth Armored Thermocouples
Original price was: $34.76.$24.33Current price is: $24.33.
- Locking Fitting Freely Adjustable Over Flexible Armor
- Spring-Action Catch Holds Probe Firmly in Place
- TYPE ADF Fixed Locking Cap Becomes a Permanent Part of Your Installation
- TYPE ADR Removable Locking Cap Bayonet Fitting Connects with a Twist
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Two styles are available. Style ADF has a unique locking fitting that mounts permanently to your equipment. The quick release action of the locking fitting allows fast installation and removal of the probe.
Style ADR has a removable locking fitting and requires a BTA adapter. This style is ideal for installations where the mounting surface is under a layer of insulation, or where the locking cap must be removable.
| Thermocouple Type | J, K, T, E |
|---|---|
| Process Temperature Max | 720, 1150, 370, 820 |
| Process Temperature Range | 0 to 720°C (32 to 1300°F), 0 to 1150°C (32 to 2100°F), 0 to 370°C (32 to 700°F), 0 to 820°C (32 to 1510°F) |
| Process Connection Size | Bayonet Style Locking Fitting, 1/8" NPT, Not Applicable |
| Junction Type | Grounded, Ungrounded |
| Probe Length | 0.5 in, 1 in, 3 in, 0.25 in, 2 in, 0.375 in, 5 in, 108 in, 0.625 in |
| Cable Insulation | Not Applicable, Fiberglass, Fiberglass with Armored Cable |
| Cable Length | 24 in, 12 in, 18 in, 30 in, 48 in, 8 in, 10 in, 36 in, 15 in, 6 in, 14 in, 16 in, 168 in, 360 in, 96 in, 120 in, 46 in, 70 in, 108 in, 32 in, 72 in, 42 in |
| Termination Connection Type | Spade Lugs, Standard Connector, Standard Female Connector, Immersion Probe |
| Category | Thermocouple |
| Process Temperature Unit | °C |
| Process Temperature Min | 0 |
| Sensor Application | Adjustable Length Immersion Probe |
| Sheath Material | 304 Stainless Steel |
| Probe Diameter | 0.28 in |
| Wire Gauge | 20 AWG |
