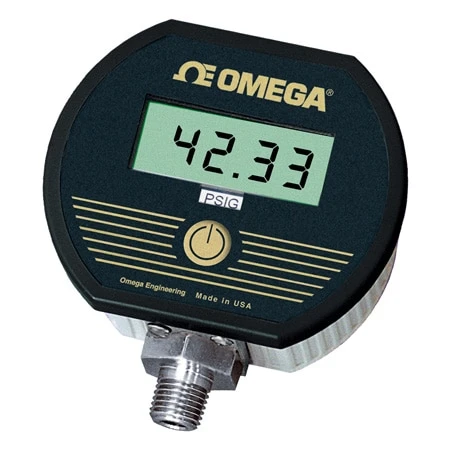

Advanced Digital Pressure Gauge
Original price was: $351.00.$99.99Current price is: $99.99.
- Now with Selectable Engineering Units
- Capture Minimum and Maximum Readings
- Zero with One-Touch
- 316 Stainless Steel Wetted Parts
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The DPG5500 series have an aluminum case, and several user-configurable settings, min/max readings, zero function, and selectable units. They have a ±0.25% accuracy.
The DPG5500 is powered by 2 replaceable ‘AA’ alkaline batteries that can operate the gauge for 2000 hours or 150 to 1500 hours depending on backlight usage. All DPG5500 models include the 5 minute auto-shutoff circuitry standard to conserve battery life. A low battery indicator will be displayed when the batteries must be replaced. The gauge can be factory set for on/off operation by specifying the ‘-NS’ option at time of order.
| Pressure Range Units | psi, inHg |
|---|---|
| Pressure Range Min | 0, -15 |
| Pressure Range Max | 60, 3, 5, 100, 15, -15, 1000, 200, 2000, 300, 30, -30, 3000, 500, 5000 |
| Pressure Range | 0 to 60 psi, 0 to 3 psi, 0 to 5 psi, 0 to 100 psi, 0 to 15 psi, 0 to 1,000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 300 psi, 0 to 30 psi, 0 to 30 inHg, 0 to 3,000 psi, 0 to 500 psi, 0 to 5,000 psi, -15 to 100 psi |
| Pressure Type | Gauge, Absolute, Vacuum |
| Pressure Port Type | NPT Male |
| Pressure Port Size | 1/4" |
| Power Source | Battery Powered |
| Accuracy Value | ±0.25% |
| Accuracy Class | 0.1% to 0.25% |
| Number of Digits | 4 |
| Additional Features | Extruded Aluminum Enclosure |
