Sale!

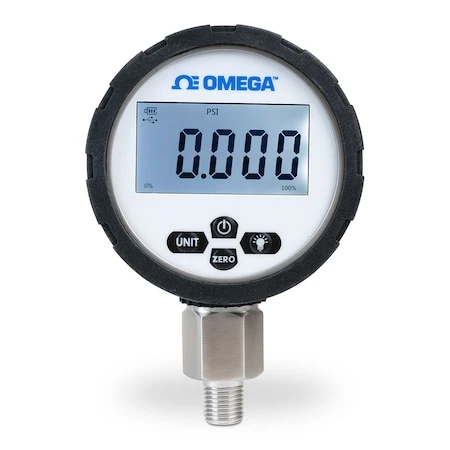

Advanced, Digital Pressure Gauge With Data Logging

Original price was: $307.00.Current price is: $98.99.

Log up to 10,000 data points
USB output and software included for easy data retrieval
Visual bar display of pressure usage of full scale
Large display with bright backlight for high visibility

Pressure Range Min

Pressure Range Max

Pressure Range

Pressure Type

Clear

SKU: DPG280-100G Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The DPG280 series are robust, digital pressure gauges that feature data logging capabilities. Store up to 10,000 points; sample rate is adjustable and can be logged as fast as one measurement per second or as slow as one measurement every hour. Recorded data is accessible by utilizing a USB connection and easy-to-use software that make data analysis straightforward.
There are several additional features that add to the usability of this series. There are five selectable engineering pressure units, a zero function, peak measurement display, and bright white backlight. Also displayed is a visual bar to quickly show percentage of rated pressure being utilized and the battery level of the unit to help prevent a unit unexpectedly losing power. These units can measure a wide variety of gasses and liquids that are non-corrosive and compatible with 304 stainless steel.

load-cell-faq-uf

weigh3-uf

Pressure Range Min	0, -5, -15
Pressure Range Max	100, 5, 15, 30, 60, 10000, 1000, 15000, 200, 2000, 300, 3000, 500, 5000
Pressure Range	0 to 100 psi, -5 to 5 psi, 0 to 5 psi, 0 to 15 psi, -15 to 15 psi, 0 to 30 psi, 0 to 60 psi, -15 to 100 psi, 0 to 10,000 psi, 0 to 1,000 psi, 0 to 15,000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 300 psi, 0 to 3,000 psi, 0 to 500 psi, 0 to 5,000 psi
Pressure Type	Gauge, Compound Gauge, Absolute, Vacuum
Pressure Range Units	psi
Pressure Port Type	NPT Male
Pressure Port Size	1/4"
Power Source	Battery Powered
Accuracy Value	±0.25%
Accuracy Class	0.1% to 0.25%
Number of Digits	5
Electrical Output	USB
Output Signal	Digital
Additional Features	Data Recording
