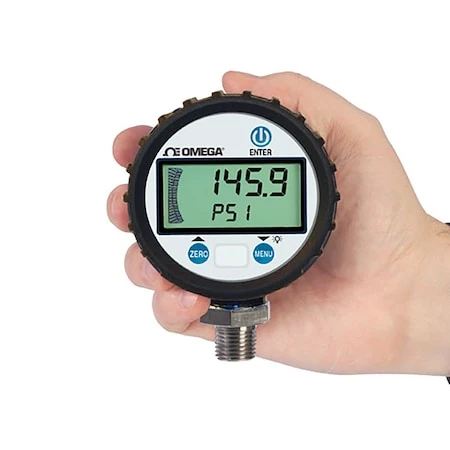

Advanced Digital Pressure Gauge With NEMA 4X Case

Original price was: $354.00.Current price is: $95.99.

0.25% Full Scale Terminal Point Accuracy
5 Digit LCD Display with Large 12.2 mm (0.48′) Digits
20 Segment Bar Graph Display
User-Selectable Engineering Units

Pressure Range Min

Pressure Range Max

Pressure Range

Pressure Type

Pressure Port Type

Pressure Port Size

Clear

SKU: DPG8001-10K Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The DPG8001 Series of digital pressure gauges offer 0.25% full scale terminal point accuracy in a rugged easy-to-use unit, and the price is comparable to mechanical test gauges. All Stainless Steel wetted parts make them suitable for a wide variety of industrial liquids and gaseous media. This series features user-selectable engineering units, allowing one gauge to be used for a variety of pressure scales. The DPG8001 comes standard with many features that are either not available or extra cost options on many competitive digital gauges such as a tare, 20 segment bar graph MIN/MAX Memory, 9 selectable engineering units and backlighting for easy reading.

SPECIFICATIONS
Accuracy: 0.25% FS terminal point
Ranges: Vacuum through 25,000 psi gauge, vacuum and compound gauge
Battery: Two “AA” alkaline included
Battery Life: 2000 hr. minimum
Battery Indicator: 4 levels
Storage Temperature: -20 to 80°C (-4 to 176°F)
Operating Temperature: -20 to 60°C (-4 to 140°F)
Temperature Effects: 0.04%/°F (-20 to 180°F) zero and span
Update Rate: 1 Hz
Cycle Life: 100 million
Vibration: MIL-STD-202G Method 201A
Shock: MIL-STD-202G Method 213 B
Display: 5-digit numeric top line, 5 character alphanumeric lower line
Bar Graph: 20 segment vertical bar graph
Digit Height: 12.2 mm (0.48′) upper line; 6.1 mm (0.24′) lower line
Display Indicators: 4-segment battery life indicator plus dedicated icons for gauge timer, backlight timer, tare, min and max
View Angle: 12 o’clock
Backlight: Standard, blue
Enclosure Material (Case and Back): Polycarbonate/ABS
Window: Polycarbonate
Enclosure Rating: NEMA 4X (IP65)
Protective Boot: Standard
Serial Number: Yes
Proof Pressure
    Vac to <300 psi: 200% range
    300 to <5000 psi: 150% range
    5000 to 25,000 psi: 120% range
Burst Pressure
    Vac to <300 psi: 800% range
    300 to <5000 psi: 500% range
    5000 to 25,000 psi: 300% range
Keypad Functions
3 Key with Multi Press Functionality
    On/Off: Power symbol and enter
    Zero: Zero, tare, and scroll up arrow
    Menu: access, backlight, down arrow
Engineering Units: psi, bar, inHg, cmHg, mmHg, kPa, mPa, kg/cm2, ftH2O, custom units available
Agency Approvals: CE (heavy industrial), ASME B40.7, RoHs, UL 61010/cUL pending
Connection: 1/4 NPT male, lower position up to 10,000 psi
    >10,000 psi: 9/16-18 UNF Female AMINCO
Dimensions: 27 mm Hex (11/16′)
Wetted Parts: 17-4 SS & 316L SS laser welded

Pressure Range Min	0, -15
Pressure Range Max	10000, 100, 15, 15000, 1,500, 1000, 200, 20,000, 25,000, 2000, 30, 300, 150, 60, 3000, 500, 5000, -15
Pressure Range	0 to 10,000 psi, 0 to 100 psi, 0 to 15 psi, 0 to 15,000 psi, 0 to 1,500 psi, 0 to 1,000 psi, 0 to 200 psi, 0 to 20,000 psi, 0 to 25,000 psi, 0 to 2,000 psi, 0 to 30 psi, 0 to 300 psi, -15 to 100 psi, -15 to 15 psi, -15 to 150 psi, -15 to 30 psi, -15 to 300 psi, -15 to 60 psi, 0 to 3,000 psi, 0 to 500 psi, 0 to 5,000 psi, 0 to 60 psi
Pressure Type	Gauge, Vacuum
Pressure Port Type	NPT Male, UNF Female
Pressure Port Size	1/4", 9/16"
Pressure Range Units	psi
Power Source	Battery Powered
Accuracy Value	±0.25%
Accuracy Class	0.1% to 0.25%
Number of Digits	5
