Advanced, High Accuracy, Digital Pressure Gauge With Ambient Temperature

Original price was: $323.00.Current price is: $97.99.

Digital pressure Gauge with 5-digit display, main and auxiliary screen design
AA battery power, services more than 3600 hours
High accuracy class, 0.05% FS
10 pressure units available: MPa/KPa/psi/bar/pa/mBAR/mmHg/mH20/Torr/kgf/cm²

Pressure Range Min

Pressure Range Max

Pressure Range

Pressure Type

Clear

SKU: DPG210-100G Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

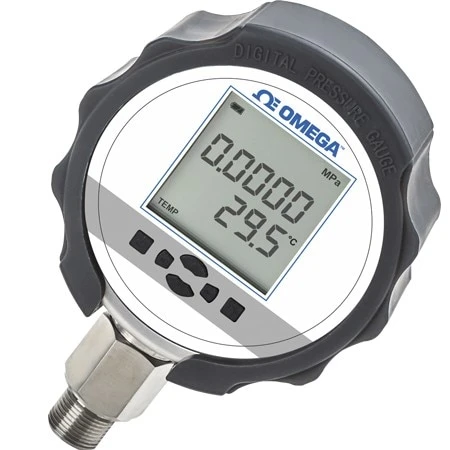

The DPG210 features a large 55×55 mm (2.1’x2.1′) LCD screen, with 5 digit 17mm primary and 13.5mm auxiliary lines. It displays both the current pressure as well as the local temperature, maximum, or minimum pressures from the reference data. Powerful functions: include 10 common pressure units and flexible power supplied by either three AA batteries or via USB connection.

An ultra-low power consumption design allows the DPG210 to run more than 3600 hours when powered by three standard alkaline AA batteries. The DPG210 is an all digital design combining a high precision ADC and high-speed microprocessor. This provides a product that is high precision, with good stability and great shock resistance.

5-point NIST calibration certificate is available and can be added to each unit for an additional cost of $150 by contacting sales. Add “-CAL-3” to the end of the part number for “NIST” option.

Pressure Range Min	0, -5, -15
Pressure Range Max	100, 5, 15, 0, 30, 60, 10,000, 1000, 200, 2000, 300, 3000, 500, 5000
Pressure Range	0 to 100 psi, -5 to 5 psi, 0 to 5 psi, 0 to 15 psi, -15 to 15 psi, -15 to 0 psi, 0 to 30 psi, 0 to 60 psi, 0 to 10 psi, 0 to 1,000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 300 psi, 0 to 3,000 psi, 0 to 500 psi, 0 to 5,000 psi, -15 to 100 psi
Pressure Type	Gauge, Compound Gauge, Absolute, Vacuum
Pressure Range Units	psi
Pressure Port Type	NPT Male
Pressure Port Size	1/4"
Power Source	Battery Powered
Accuracy Value	±0.05%
Accuracy Class	< 0.1%
Number of Digits	5
