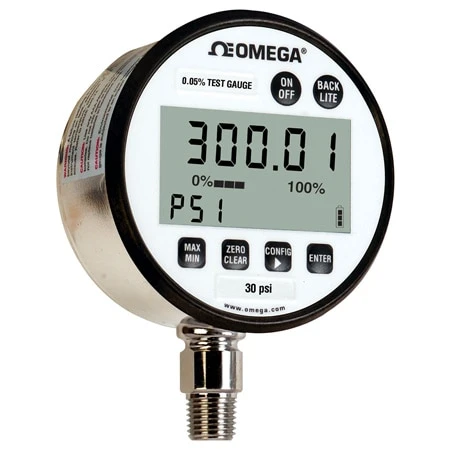

Advanced, High Accuracy, Digital Pressure Gauge With NEMA 4X Case

Original price was: $329.00.Current price is: $96.99.

0.05, 0.10 and 0.25% FS Accuracy Models
12 User-Selectable Units of Measure
Large 17 mm (0.66′) Display with % of Range Bar Graph
All Stainless Steel Wetted Parts and Case

Pressure Range Min

Pressure Range Max

Pressure Range

Pressure Type

Accuracy Value

Accuracy Class

Number of Digits

Clear

SKU: DPG7000-VAC/30 Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The DPG7000 Series comprises high-accuracy digital test gauges designed for the most demanding applications. These gauges feature a 0.05% total error band, which includes linearity, hysteresis, repeatability, and temperature effects from -18 to 66°C (0 to 150°F). The all stainless steel wetted parts and case carry a NEMA 4 (IP65) rating.

A variety of user-configurable options—including languages, update rate, dampening, backlight, and auto-off—greatly increase the DPG7000’s versatility. All units include a stainless steel protective cover and carrying case. A 10-point individual calibration chart is standard with 0.05% accuracy units.

SPECIFICATIONS
Accuracy:
   DPG7000: 0.05% FS total error band accuracy
   DPG7010: 0.10% FS total error band accuracy
   DPG7025: 0.25% FS total error band accuracy
Proof Pressure:
    <3,000 psi: 200% FS
    3000 to 5000 psi: 150% FS
    7000 psi: 120% FS
Burst Pressure:
    <3,000 psi: 800% FS
    3000 to 5000 psi: 300% FS
    7000 psi: 150% FS
Terminal Point: Total error band (TEB) including hysteresis, linearity, repeatability and temperature from -18 to 66°C (0 to 150°F)
Calibrate: Zero and Span (password protected)
Case
   Size: 76 mm (3′)
   Material: 300 Series Stainless Steel
   Finish: Electropolished
   Rating: Weatherproof, IP65, NEMA 4
Wetted Parts: 316 Stainless Steel
Socket Size: 1?4 NPT Male
Socket Location: Lower (6 o’clock)
Mounting: Stem
Operating Temperature: -18 to 63°C (0 to 150°F)
Storage Temperature: -40 to 82°C (-40 to 180°F)
Temperature Correction: -18 to 63°C (0 to 150°F); included in accuracy specification
Power: 3 “AAA” alkaline batteries, included
Battery Life: >1000 hr
Auto Off: Five Options: Never, 2 min., 5 min., 15 min., 30 min.
Agency Approvals: CE EN 50082-1 (1997), FM, CSA
Calibration Chart: 10 point individual calibration chart, standard for DPG7000; optional for DPG7010 and DPG7025 models
Standard Features: 300 Series SS Protective Cover, Protective Carrying Pouch
Optional Features: Pressure port type and location, panel mounting; consult engineering for details

DISPLAY
Type: LCD, with bar graph; backlight standard
Display Digits: 5, 99,999 counts
Character Height: 16.7 mm (0.66′)
Engineering Units: psi, inHg, inH₂O, ftSW, Bar, mBar, kPa, mPa, mmHg, cmH₂O, mmH₂O, kg/cm²
Update Rate: Four Options; 10x/sec, 5x/sec, 2x/sec, 1x/sec
Dampening: Five Options; None, average 2, 4, 6, 8 readings
Language: Seven Languages; English, Spanish, French, Italian, German, Portuguese, Dutch
Backlight: Five Options; on/off, 10 sec., 30 sec., 1 min., 5 min.
Zero Disable: Allows for disabling of Zero button
Contrast: Seven available options
Disable: Allows for “lock-out” of CONFIG options

KEYPAD FUNCTIONS
On/Off: Manually turns unit on and off
Backlight: Manually turns backlight on and off
Min/Max: Stores min. and max. values when displayed
Zero/Clear: Zeros display or clears min. and max. values when displayed
Enter: Selects items in configuration menu
Config: Configuration mode; allows scrolling through configuration menus to select available options

Pressure Range Min	-15, 0
Pressure Range Max	30, 10, 100, 15, 1000, 200, 2000, 300, 3000, 500, 5000, 60, 7,000, -15, 50, 600
Pressure Range	-15 to 30 psi, 0 to 10 psi, 0 to 100 psi, 0 to 15 psi, 0 to 1,000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 30 psi, 0 to 300 psi, 0 to 3,000 psi, 0 to 500 psi, 0 to 5,000 psi, 0 to 60 psi, 0 to 7,000 psi, -15 to 15 psi, 0 to 50 psi, 0 to 600 psi
Pressure Type	Compound Gauge, Gauge, Vacuum, Absolute
Accuracy Value	±0.05%, ±0.10%, ±0.25%
Accuracy Class	< 0.1%, Best, 0.1% to 0.25%
Number of Digits	5, Gauge
Pressure Range Units	psi
Pressure Port Type	NPT Male
Pressure Port Size	1/4"
Power Source	Battery Powered
