Air Pressure Regulators For High Flow
Original price was: $145.83.$98.99Current price is: $98.99.
- High Flow Capacity, up to 80 scfm
- Output Pressure Insensitive to Flow Changes
- Can Be Serviced Without Removing from Air Line
- Insensitive to Changes in Flow
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

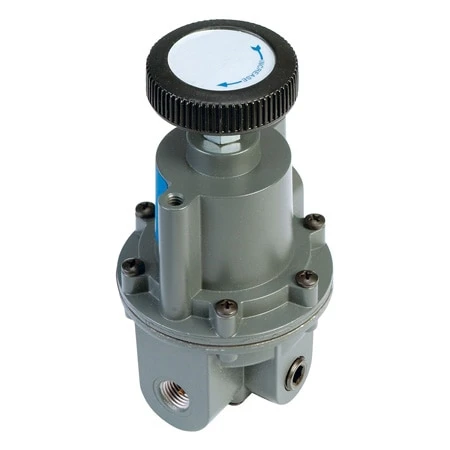

The OMEGA PRG700 Series regulators are designed for applications that require high flow capacity and accurate process control. A poppet valve balanced by a rolling diaphragm insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube, which adjusts the air supply in accordance with the flow velocity.
SPECIFICATIONS
Flow Capacity: See performance curves on spec sheet
Exhaust Capacity: 4 scfm [outlet pressure 5 psi > set pressure] Sensitivity: 1/8 in (3.2 mm) H2O
Supply Pressure Effect: < 0.1 psi for 100 psi change
Air Consumption (Steady State): From 1.0 to 12.5 scfh
Supply Pressure: 250 psig (17.5 bar) maximum
Operating Temperature: -40 to 71°C (-40 to 160°F)
Weight: 0.74 kg (1.625 lb)
Mounting: Pipe, panel, or optional bracket
Port Sizes: 1/4 NPT female
| Pressure Range | 0 to 2 psig, 0 to 15 psig, 0 to 150 psig, 0 to 30 psig, 0 to 60 psig |
|---|---|
| Maximum Inlet Pressure | 250 psig |
| Pressure Port Size | 1/4" |
| Pressure Port Type | NPT Female |
| Media Type | Air |
| Features | High Flow Capacity |
