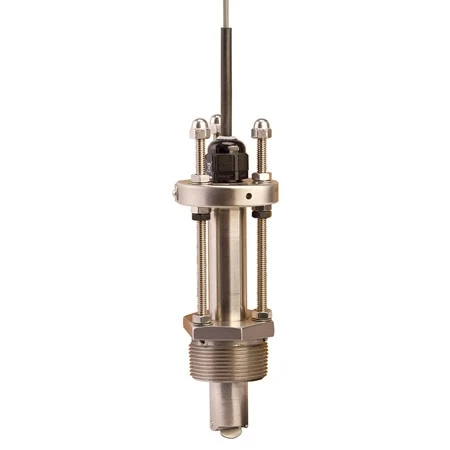

All Metal Hot Tap Option Paddlewheel Flow Meter

Original price was: $367.00.Current price is: $99.99.

Rugged 316 Stainless Steel Construction
Flow Rates as Low as 0.3 fps
Installs in a Variety of Pipe Sizes
No Magnets in Process Fluid

SKU: FP-2541 Categories: Flow Instruments, Flow Meters, Paddlewheel Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FP-2540 and FP-3-1500 Series offer the added strength and corrosion resistance of stainless steel for applications requiring low velocity measurement. Unique internal circuitry eliminates the need for magnets in the process fluid, enabling lower flow measurement while maintaining the advantages of insertion-type sensor design. The sensor’s unique rotor/bearing design offers low flow measuring capability with increased reliability.

SPECIFICATIONS
Output Signal: Open collector, sinking
Output Frequency: 15 Hz per fps
Operating Range: 0.3 to 20 fps
Pressure/Temperature: With standard
FKM O-rings: 250 psi @ 82°C (180°F)
Power Requirements: 5 to 24 Vdc
Pipe Size Range:
FP-2540: 1.5 to 24″
FP-3-1500-2X: 1.5 to 36″
Repeatability: ±0.5% of full range
Linearity: ±1% of full range
MATERIALS
Sensor Fitting: 316 SS
O-rings: FKM
Rotor: CD4MCu
Rotor Bearings: PEEK
Cable Type: Twisted pair with foil shield
Cable Length: 7.6 m (25′); 305 m (1000′) max

Features	Not Applicable, Hot Tap Servicing
Category	Meter
Velocity Range	0.3 to 20 FPS
Accuracy	±1%
Max Process Temperature	82 °C (180 °F)
Max Operating Pressure	250 psi
Wetted Materials	316 ss, PEEK, CD4MCU, FKM O-RING
Output Signal	Amplified Square Pulse
Supply Power	5 to 24 Vdc
Compatible Fittings	Standard 1.5" NPT Tee Adaptors, Customer Supplied
Pipe Size Range	1.5 to 24"
Display	No Display
