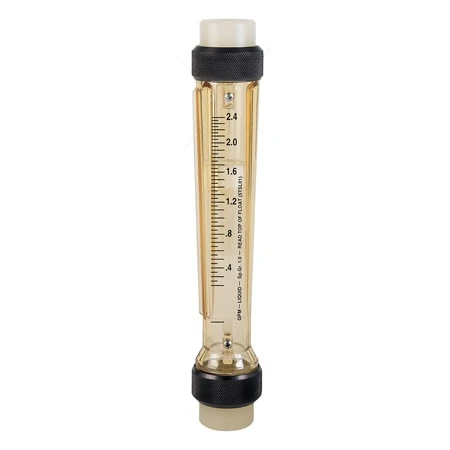

All Plastic Variable Area Flow Meters
Original price was: $333.00.$98.99Current price is: $98.99.
- NIST Calibration Available
- Union Ends to Simplify Installation and Maintenance
- Chemical- and Break-Resistant Metering Tube
- See-Through, Detachable Direct Reading Scale (GPM Water)
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Variable Area Flow Meters for water or water like liquid flow measurement applications.
SPECIFICATIONS
Capacity: 0.5 to 100 GPM water (PTFE float)
Metering Tube Material: Polysulfone
Accuracy/Repeatability: ±6% FS/ ± 1%
Scale Length: 127 mm (5′)
Float: PTFE
Fittings: PVDF
O-Rings: FKM (Perfluoroelastomer optional)
Guide Rod: Polysulfone
Note:Polysulfone should not be used in direct sunlight or any other significant sources of Ultra-Violet light.
| Liquid Flow Range | 0.5 to 5 GPM, 0.1 to 1 GPM, 2 to 2.4 GPM, 1 to 10 GPM, 2 to 20 GPM, 6 to 60 GPM, 10 to 100 GPM |
|---|---|
| Process Connection Size | 3/4", 1/2", 1", 2" |
| Max Operating Pressure | 150 psi, 125 psi |
| Category | Meter |
| Media Type | Water |
| Accuracy | ±6% |
| Process Connection Type | NPT Female |
| Wetted Materials | PTFE, PVDF, Polysulfone, FKM |
| Max Process Temperature | 71 °C (160 °F) |
| Scale | Direct Read |
| Valve Included | No |
