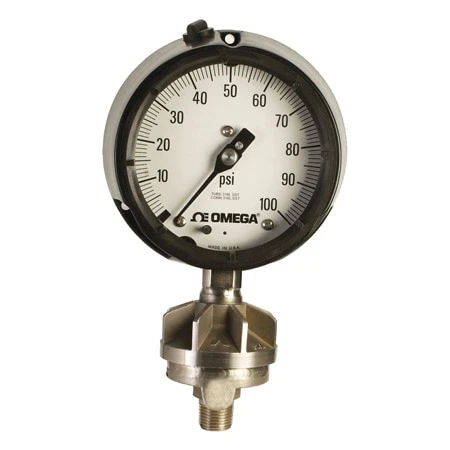

All-Welded Pressure Gauges With Integral Diaphragm Seal

Original price was: $365.00.Current price is: $98.99.

All-Welded Seal to Gauge Design and Seamless Bourdon Tube Provide Fewer Leak Paths than Competitive Models
Stainless Steel Wetted Parts and Bourdon Tube
Liquid Fillable Gauge Case with Bladder
Tamper Resistant Design

SKU: PGR-45LSS-100 Categories: Analog Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s PGR Series All-welded gauge and seal offers customers a lower cost alternative to an individual gauge and diaphragm seal with the added advantage of a reduction in potential leaks. The wetted parts are 316L stainless steel. The process connection is a ½ NPT male bottom mount.

Specificat ions
Accuracy: ± 0.5% of span (grade 2A)
Case Size: 114 mm (4.5′) diameter
Process Connection: ½ MNPT bottom connection
Seal Upper Material: 316L stainless steel
Diaphragm Material: 316L stainless steel
System Fill Type: DC200
Operating Temperature: 143°C (225°F)
Higher with cooling element PG-CT2

Pressure Range Max	100, 1,000, 15, 1,500, 160, 200, 2,000, 2,300, 30, 300, 3,000, 400, 60, 600, 800
Pressure Type	Gauge
Pressure Range Units	psi
Pressure Range Min	0
Pressure Port Type	NPT Male
Pressure Port Size	1/2"
Accuracy Value	±0.5%
Accuracy Class	> 0.25%
Dial Size	4.5"
Additional Features	Integral Diaphragm Seal
