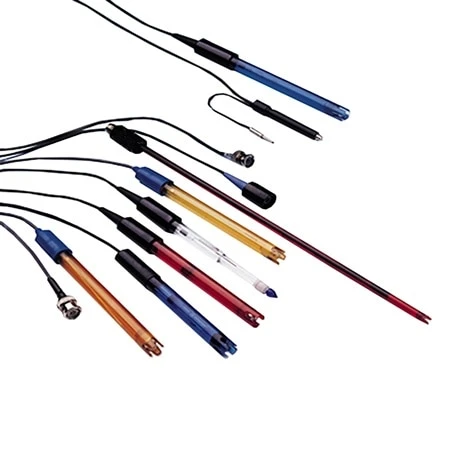

Alpha® Series Rugged Gel-Filled PH And ORP Electrodes

Original price was: $55.83.Current price is: $39.08.

16 Month Shelf Life
Wide Variety Available
Electrodes to Meet Many Application Needs
Low Cost High Value

Measurement Type

Range

Wetted Materials

Max Temperature

Process Connection Type

Features

Clear

SKU: PHE-1304 Categories: Air, Soil, Liquid, and Gas, Control & Monitoring, Water Quality Sensors Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Model No. BNC	Model No. U.S. Std.	Application	Insertion Lgth mm (in)	Diameter mm (in)	pH Range	Temp. °C (°F)
PHE-1311	PHE-1311-U	General purpose	150 (6)	12 (.47)	0-14	0-100 (32-212)
PHE-1411	PHE-1411-U	General purpose for samples requiring double junction	150 (6)	12 (.47)	0-14	0-100 (32-212)
PHE-1332	PHE-1332-U	Test tubes	150 (6)	6 (.24)	0-14	0-100 (32-212)
PHE-1432	PHE-1432-U	Test tubes for samples requiring double junction	150 (6)	6 (.24)	0-14	0-100 (32-212)
PHE-1335	PHE-1335-U	Extra long test tubes (detachable style shown)	300 (12)	6 (.24)	0-13	0-100 (32-212)
PHE-1471	PHE-1471-U	Measurement of flat surfaces for samples requiring double junction	150 (6)	12 (.47)	0-14	0-100 (32-212)
PHE-2385	PHE-2385-U	Rugged puncture tip for meats, cheeses, fruits, leather	55 (2.2)	8 (.31)	0-13	0-100 (32-212)
PHE-1317	PHE-1317-U	Economical with removable guard and PTFE junction	110 (4.3)	12 (.47)	0-13	0-100 (32-212)
PHE-1417	PHE-1417-U	Economical with double PTFE junction	110 (4.3)	12 (.47)	0-12	0-80 (32-176)
PHE-1304	PHE-1304-U	Economy	90 (3.5)	12.5 (.49)	0-12	0-80 (32-176)
ORE-1311	ORE-1311-U	General purpose ORP	150 (6)	12 (.47)	±2000 mV	0-100 (32-212)
ORE-1411	ORE-1411-U	Double junction ORP for interfering ions such as zinc, copper or sulfide	150 (6)	12 (.47)	±2000 mV	0-100 (32-212)

Please download PDF file for full specifications and a complete list of available models.

Measurement Type	pH, ORP
Range	0 to 12 pH, ±2000 mV, 0 to 14 pH, 0 to 13 pH
Wetted Materials	Epoxy, PTFE, Epoxy, PP, Polyethersulfone, PTFE, Epoxy, Ceramic, Epoxy, Epoxy, HDPE, Glass, Ceramic
Max Temperature	80 °C (176 °F), 100 °C (212 °F)
Process Connection Type	BNC, US Standard Connector
Features	Not Applicable, double Junction, Test Tubes
