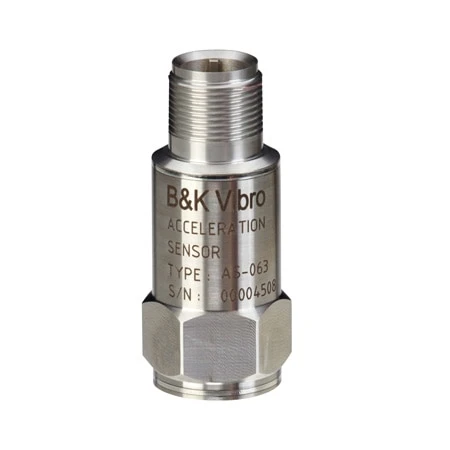

B&K Vibro Accelerometer For Hazardous Locations

Original price was: $318.00.Current price is: $96.99.

Hermetically sealed
Rugged (IP66/ IP67) and corrosion resistant design
Field proven MIL-C-5015 connector
Class 1 Division 1 sensors for hazardous locations

SKU: AS-063 Categories: Accelerometers, Control & Monitoring, Motion and Position Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The AS-063 is designed for industrial vibration measurements and particularly suitable for general measurements on rotating machinery. It covers a broad application range like monitoring of turbines compressors pumps generators etc. Its robust and high-quality design make this sensor the perfect match for demanding applications. These are Class 1 Division 1 sensors for hazardous locations.

This acceleration sensor operates according to the piezo-electric principle. A piezo-element and an internal sensor mass form a spring-mass system in the sensor.

If this system is subjected to vibrations the mass produces an alternating force on the piezo element. As a result of the piezo effect an electrical charge is produced that is proportional to vibration acceleration. An integrated amplifier converts this charge signal into a usable voltage signal.

B&K Vibro Accelerometer For Hazardous Locations -Omega Engineering Sales Store AS 063 dia

Brüel & Kjaer Vibro Accelerometer Selection Table

Model	sensor technology	Sensitivity	Sensitivity accuracy	Frequency range[Hz]	Resonant frequency	measuring range	connector type	connector style	cable connection
AS-667	compression type	100 mV/g	± 10%	0.5 Hz to 13 kHz: (±3 dB)	typ 30 kHz	60 g	M12 – 4 pole	top	mountable
AS-668	compression type	100 mV/g	± 10%	0.5 Hz to 13 kHz: (±3 dB)	typ 30 kHz	60 g	M12 – 4 pole	lateral	mountable
AS-063	compression type	100 mV/g	± 5%	1.5 Hz to 13 kHz (± 3 dB)	35kHz ± 3 kHz	80 g	MIL-C-5015	top	mountable
AS-062	compression type	100 mV/g	± 5%	1.5 Hz to 13 kHz (± 3 dB)	> 20 kHz	80 g	n.a.	lateral	integrated
AS-070/001	shear type (ring)	100 mV/g	± 20%	0.32 Hz to 10 kHz (± 3 dB)	> 25 kHz	50 g	n.a.	lateral	integrated
