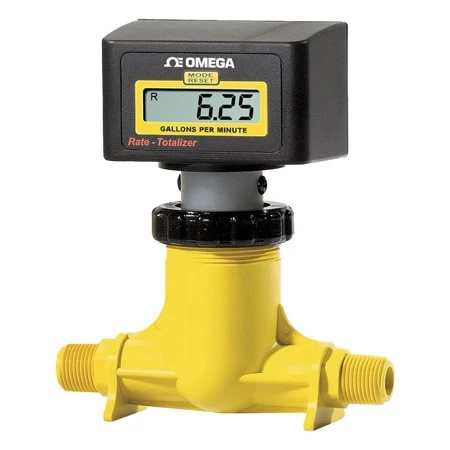

Battery Powered Indicating Flow Meter For Rate Or Total Flow

Original price was: $309.00.Current price is: $95.99.

High Accuracy Digital Paddlewheel Technology
Pipe Sizes from 3/8 to 2″
Tamper Proof Factory Programming
Easy to Read 6-Digit LCD Display, Up to 4 Decimal Places
Battery Operated (2 “AAA” Batteries Included)
Very Low Pressure Drop
Total Reset Function Can be Disabled

Flow Range

Wetted Materials

Process Connection Size

Features

Clear

SKU: FP2108-T Categories: Flow Instruments, Flow Meters, Paddlewheel Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FP2000 Series is designed to measure the flow of a fluid in a pipe. The meter is factory calibrated to any engineering units and displays the rate of flow, total or both (depending on the model selected) on a 6-digit LCD display. Two “AAA” batteries power the unit for up to one year. There are three models available: FP2000-R is a rate meter designed to measure and display the rate of flow; FP2000-T is a totalizer meter designed to measure and display the total flow; FP2000-RT is a rate/totalizer meter designed to measure and display both the rate of flow and the total flow.

Measuring accuracy requires a fully developed turbulent flow profile. Pulsating, swirling and other disruptions in the flow stream will affect accuracy. Flow conditions with a Reynolds Number greater than 4000 will result in a fully developed turbulent flow. A Reynolds Number less than 2000 is laminar flow and may result in inaccurate readings.

Reynolds Number Equation:
Reynolds Number=(3160 x Q x G)/(D x V)
Where:
   Q = Flow rate of the fluid in GPM
   G = Specific gravity of the fluid
   D = Pipe inside diameter in inches
   V = Fluid viscocity in centepoise

Minimum Straight Pipe Length Requirements

The meter’s accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The distance required for accuracy will depend on the type of disturbance.

Disturbance Type	Min Inlet Pipe Length	Min Outlet Pipe Length
Flange	10x pipe ID	5x pipe ID
Reducer	15x pipe ID	5x pipe ID
90° Elbow	20x pipe ID	5x pipe ID
Two Elbows-1 Direction	25x pipe ID	5x pipe ID
Two Elbows-2 Directions	40x pipe ID	5x pipe ID
Pump or Gate Valves	50x pipe ID	5x pipe ID

SPECIFICATIONS
Max Working Pressure: 20 bar (300 psi) at 21°C (70°F)
Max Fluid Temperature: 93°C (200°F) at 0 psi
Max Ambient Temperature: -10 to 43°C (14 to 110°F)
Full Scale Accuracy: ±2%
Power Requirement: 2 “AAA” batteries (included)
Enclosure: NEMA 4X (IP56)
Maximum Pressure Drop: 0.6 BAR (8 psi) (varies per model)
Approximate Shipping Wt: 0.91 kg (2 lb)
Materials of Construction
   Pipe Fitting: Polypropylene (FP2000 series) or PVDF (FP2100 series)
   Sensor, Paddlewheel, Axle: PVDF
   Sensor O-ring seals: FKM
   Enclosure: ABS

Flow Range	5 to 50 GPM, 0.8 to 8 GPM, 10 to 100 GPM, 0.5 to 5 GPM, 2 to 20 GPM, 4 to 40 GPM, 6 to 60 GPM, 20 to 200 GPM, 0.4 to 4 GPM, 3 to 30 GPM
Wetted Materials	PVDF, FKM O-RING, Polypropylene, PVDF, FKM O-RING
Process Connection Size	1", 3/4", 1 1/2", 1/2", 2", 3/8"
Features	Total Meter, Rate Meter, Rate and Total Meter
Category	Meter
Accuracy	±2%
Max Process Temperature	93 °C (200 °F)
Max Operating Pressure	300 psi
Supply Power	Battery Power (2AAA)
Process Connection Type	NPT Male
Display	LCD
